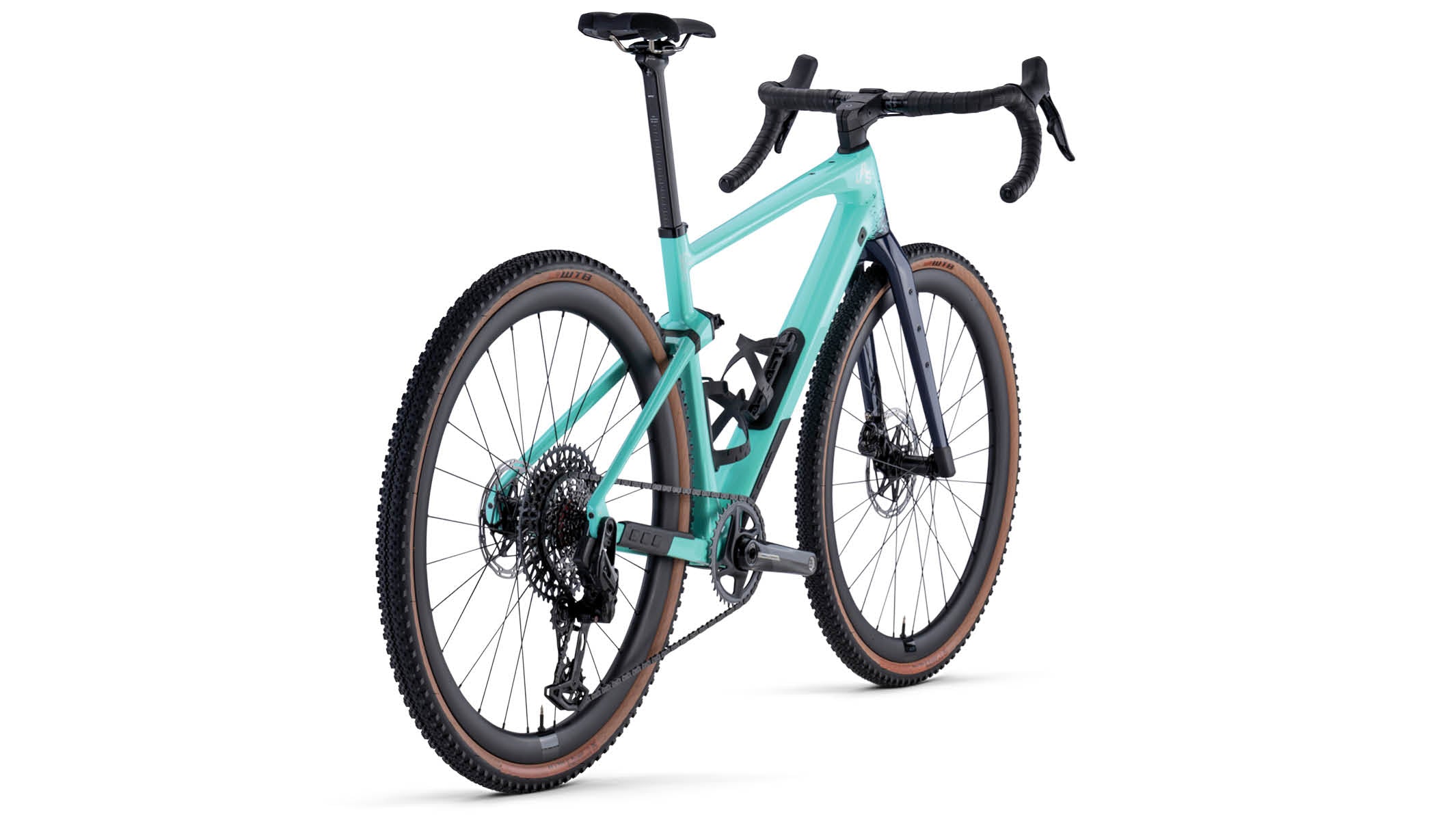

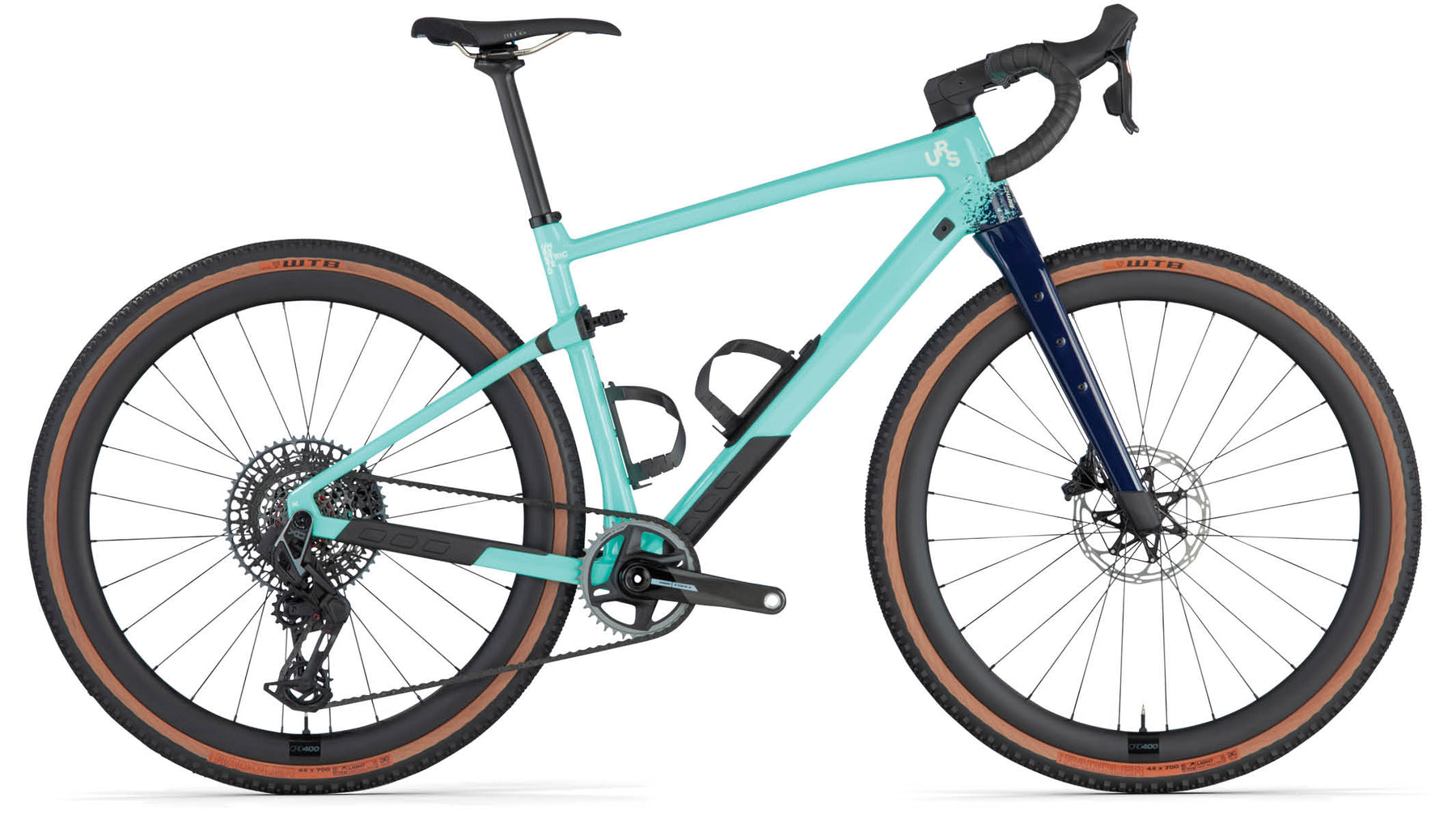

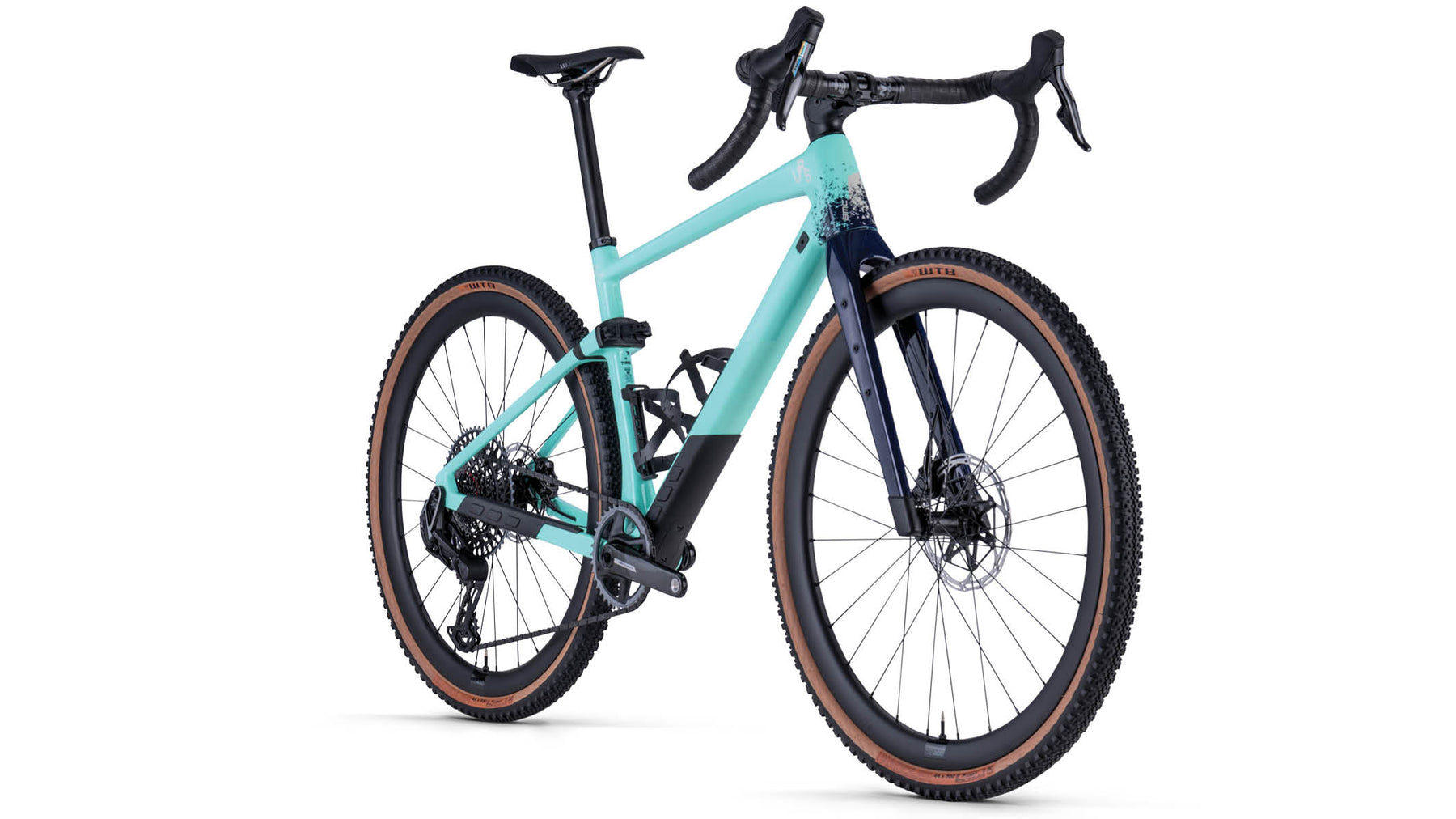

URS 01 THREE

MINTY AQUA / DARK BLUE

SRAM Force AXS x SRAM X0 Eagle Transmission Drivetrain
CRD-400 Carbon Wheelset
Downtube Storage

Regular priceCHF 7,999.00
CHF /
Tax included.

SKU: 30005326
Size
  • Low stock - 2 items left
  • Inventory on the way

URS 01 THREE

Parts & Accessories

  • Shipped to your local bike shop
Forget the confines of the current gravel world and explore the wild unknowns. The URS 01 THREE build is equipped with the SRAM Force AXS groupset, paired with the SRAM X0 Eagle transmission. It includes our reliable CRD-400 carbon wheels topped with 44mm WTB Raddler tires, our MTT suspension stem and downtube storage. A bike built to take you wherever you want it to!

Technology

Technical Overview

Frameset

Frame:
URS 01 Premium Carbon with MTT | Tuned Compliance Concept Gravel | Gravel+ Geometry | ICS Technology Stalth Cable Routing | Integrated Storage | Fender and Rack Mounts | 12 x 142mm Thru-Axle | UDH Droput

Fork:
URS 01 Premium Carbon with Tuned Compliance Concept Gravel | ICS Technology Integrated BRake & Hub Dynamo Routing | Cargo Mounts | Fender and Rack Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle

Suspension

Rear Suspension:
Micro Travel Technology Stays

Cockpit

Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology

Handlebar:
Easton EA70 AX

Seat

Seatpost:
URS 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible

Saddle:
WTB Gravelier Steel SL | Medium

Drivetrain

Crankset:
SRAM Force 1 DUB WIDE

Chainrings:
38T

Cassette:
SRAM X0 Eagle Transmission XS-1295

Cassette Size:
10-52T

Chain:
SRAM X0 Eagle Transmission Flattop

Rear Derailleur:
SRAM X0 Eagle Transmission

Shifters:
SRAM Force eTap AXS

Gears:
1 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS

Rotors:
SRAM Centerline X

Rotor Size (F/R):
180 / 160mm

Wheels

Rims:
CRD-400 Carbon | Tubeless Ready | 40mm

Hubs (F/R):
CRD-400

Tires:
WTB Raddler | 44mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

URS Bottle Cages | Storage Pouch

Additional Information

Tire Clearance:
47mm

Weight without Pedals:
9.3 Kg

ASTM Classification:
Level 2

System Weight Limit:
120kg

Size XS S M L XL
Rider Height <167 165-170 168-178 176-188 >188
Reach 390 400 410 420 430
Stack 560 560 580 610 640
Bar Drop 120 120 120 120 120
Bar Reach 80 80 80 80 80
Bar Width 420 420 420 440 440
BB Drop 76 76 76 76 76
Crank Length 170 170 172.5 172.5 175
Fork Length 405 405 415 415 415
Fork Rake 50 50 45 45 45
Front Center 633 643 651 672 693
Head Tube 133 133 140 172 204
Head Tube Angle 69 69 69.5 69.5 69.5
Rear Center 430 430 430 430 430
Seat Angle 74.5 74.5 74.5 74.5 74.5
Seat Tube 430 445 475 505 540
Seatpost Length 310 360 360 360 360
Seatpost Offset 0
Standover Height 727 735 758 778 795
Stem Length 72 72 72 80 90
Top Tube 545 555 571 589 607
Trail 84 84 86 86 86
Wheelbase 1052 1062 1070 1091 1112
