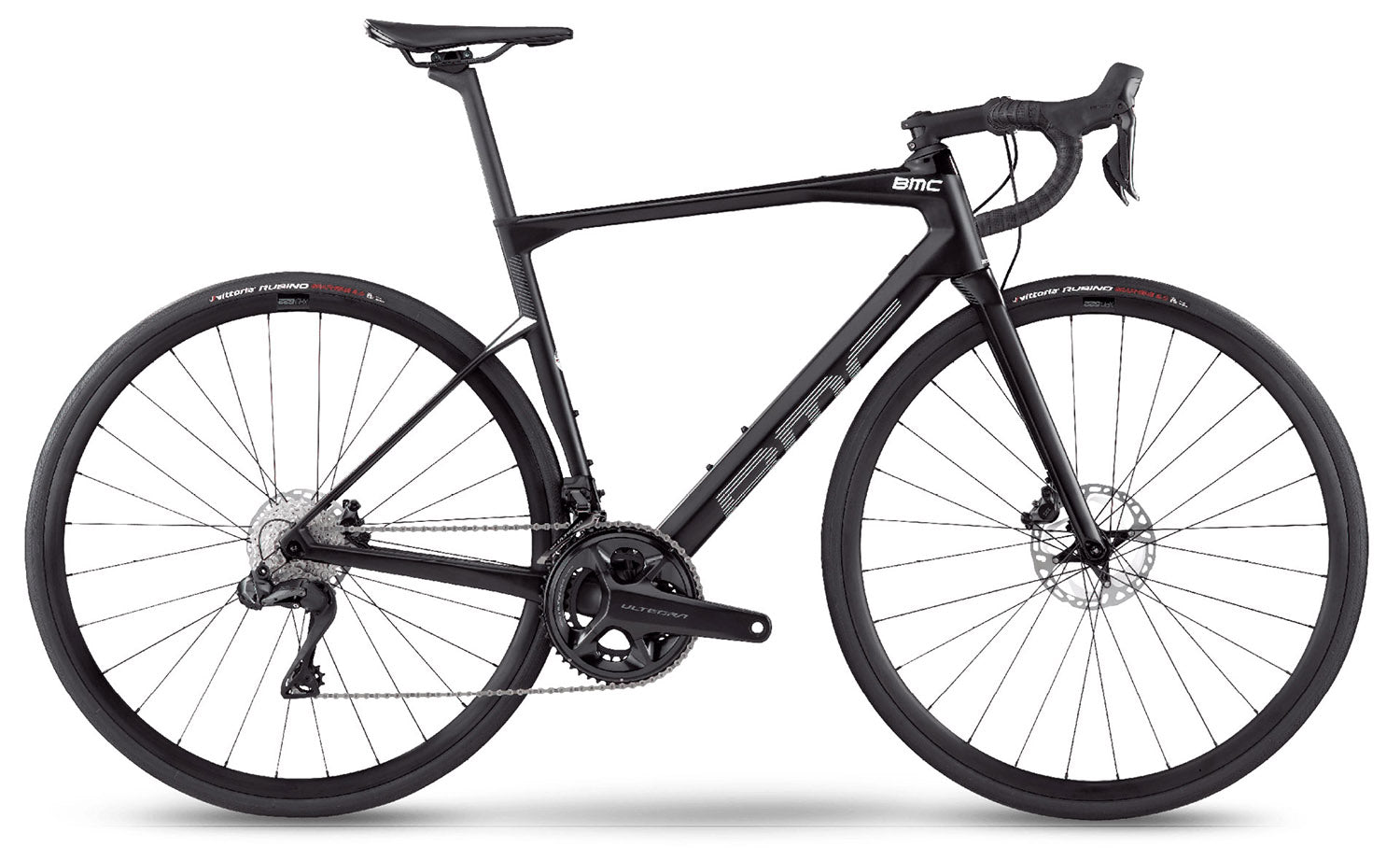

Descripción técnica

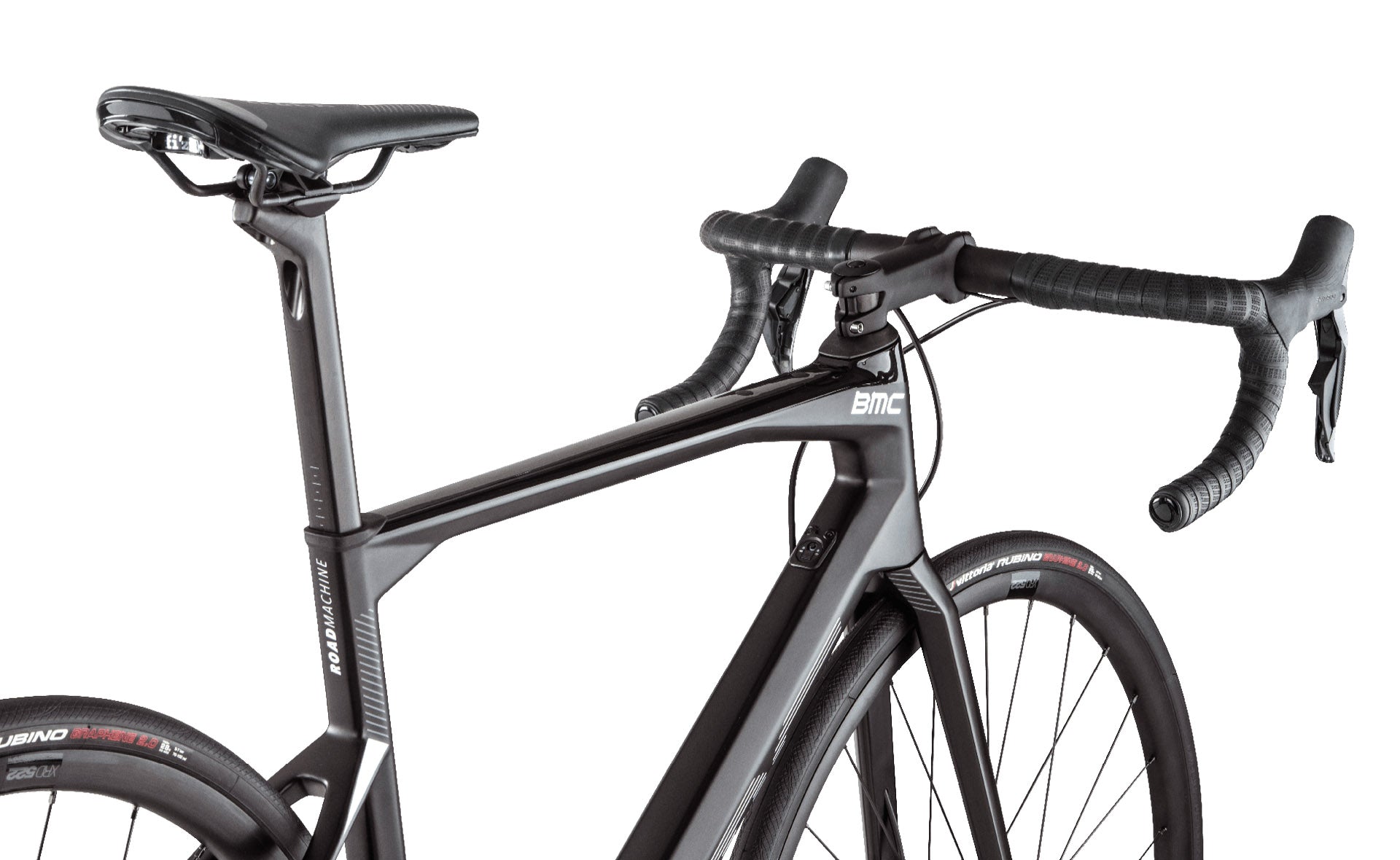

Cuadro
Cuadro:
Horquilla:

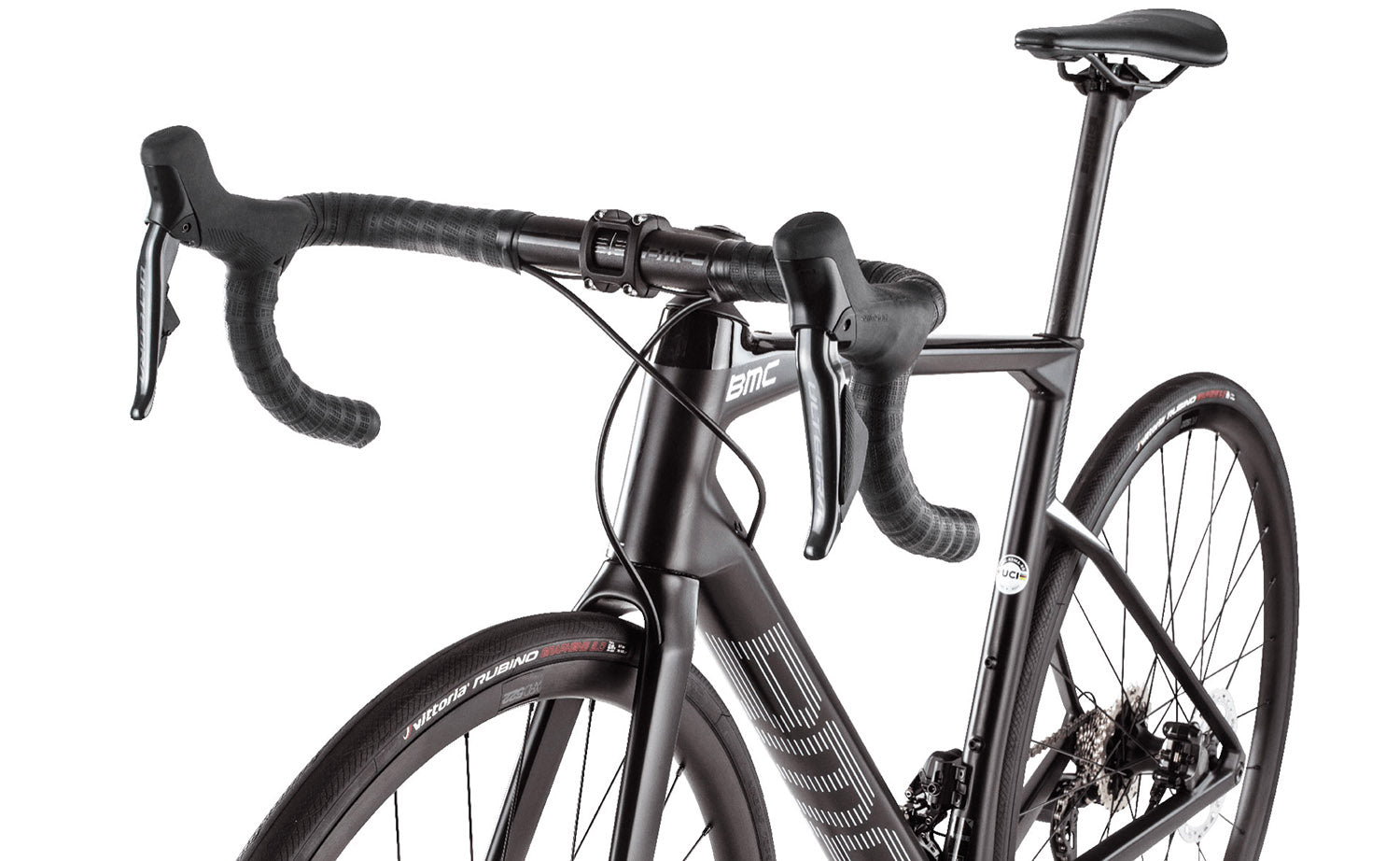

Cockpit
Potencia:
BMC RSM 01
Manillar:
BMC RAB 02 | Ergo Top Shape | Compact Bend
Seat
Tija de Sillín:
Sillín:

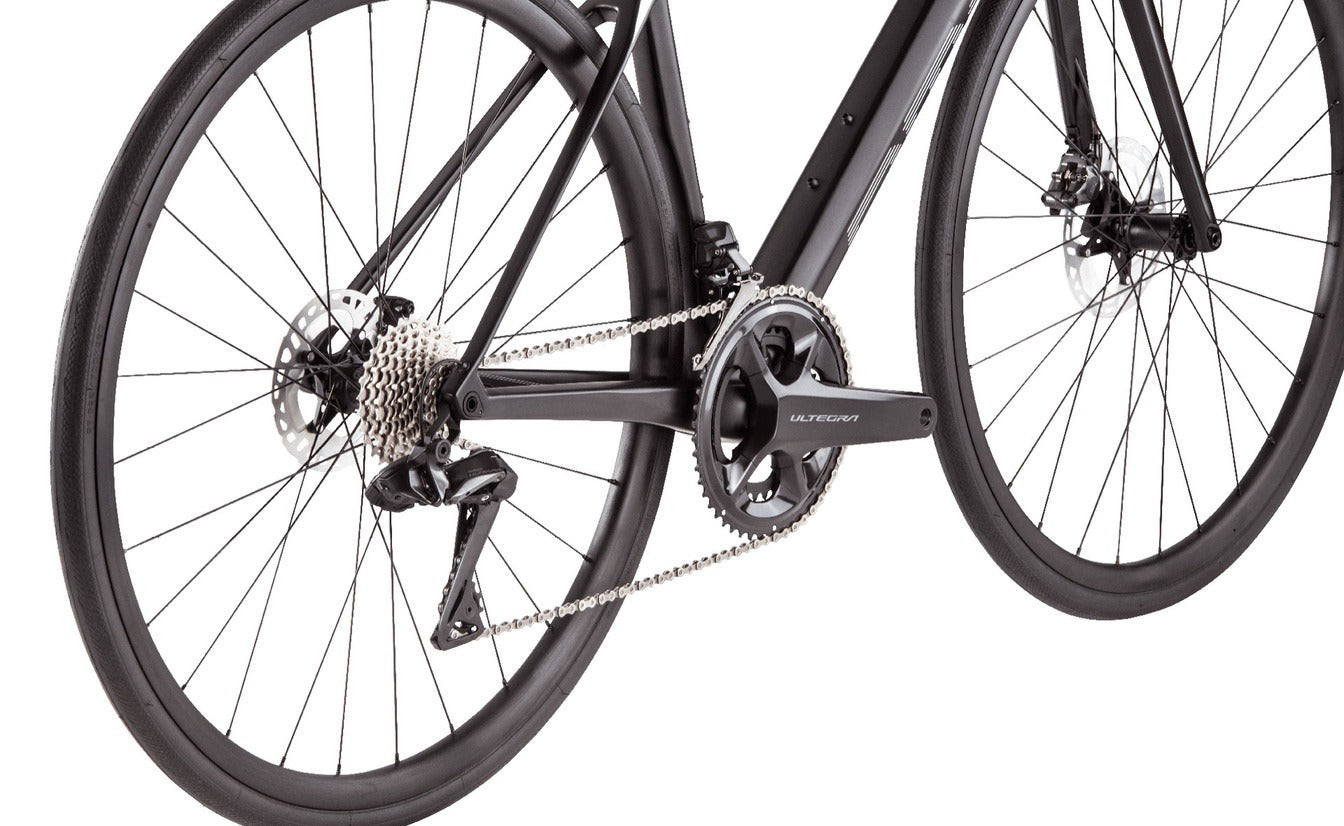

Transmisión
Platos y Bielas:
SHIMANO Ultegra FC-R8100
Platos:
50-34T
Potenciómetro:
Cassette:
SHIMANO Ultegra CS-R8100
Tamaño del cassette:
11-34T
Cadena:
SHIMANO CN-M8100
Desviador Delantero:
SHIMANO Ultegra Di2 FD-R8150
Cambio Trasero:
SHIMANO Ultegra Di2 RD-R8150
Manetas de Cambio:
SHIMANO Ultegra Di2 ST-R8170
Marchas:
2 x 12
Pedalier:
PF86 Bottom Bracket
Frenos
Pinzas de Freno:
SHIMANO Ultegra BR-R8170
Discos:
SHIMANO RT-MT800
Tamaño del disco:
160 / 140mm
Ruedas
Llantas:
XRD-522 | Tubeless Ready | 25 mm
Bujes:
XRD-522
Neumáticos:
Vittoria Rubino | 28mm
Información adicional
Paso de rueda:
33mm
Clasificación ASTM:
Level 2
Límite de peso del sistema:
110kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 374 | 382 | 386 | 390 | 394 | 398 |
| Stack | 516 | 541 | 562 | 586 | 610 | 644 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 71 | 71 | 71 | 71 | 71 | 71 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 375 | 375 | 375 | 375 | 375 | 375 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Frame Size | ||||||
| Front Center | 583 | 599 | 597 | 609 | 621 | 635 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 112 | 139 | 156 | 181 | 206 | 242 |
| Head Tube Angle | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Saddle Height Range | ||||||
| Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube | 420 | 457 | 500 | 522 | 539 | 573 |
| Seatpost Drop | ||||||
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 430 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) | ||||||
| ST Angle Actual (STEEP) | ||||||
| ST Angle Effective (SLACK) | ||||||
| ST Angle Effective (STEEP) | ||||||
| Stack (SLACK) | ||||||
| Stack (STEEP) | ||||||
| Stand Over Height (80 in Front of BB) | ||||||
| Stand Over Height (Lowest Point) | ||||||
| Standover Height | 719 | 750 | 782 | 805 | 825 | 859 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 522 | 532 | 546 | 556 | 568 | 583 |
| Top Tube (SLACK) | ||||||
| Top Tube (STEEP) | ||||||
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 999 | 997 | 1008 | 1020 | 1035 |
| Wheelbase (SLACK) | ||||||
| Wheelbase (STEEP) |
