BMC-23-10515-006

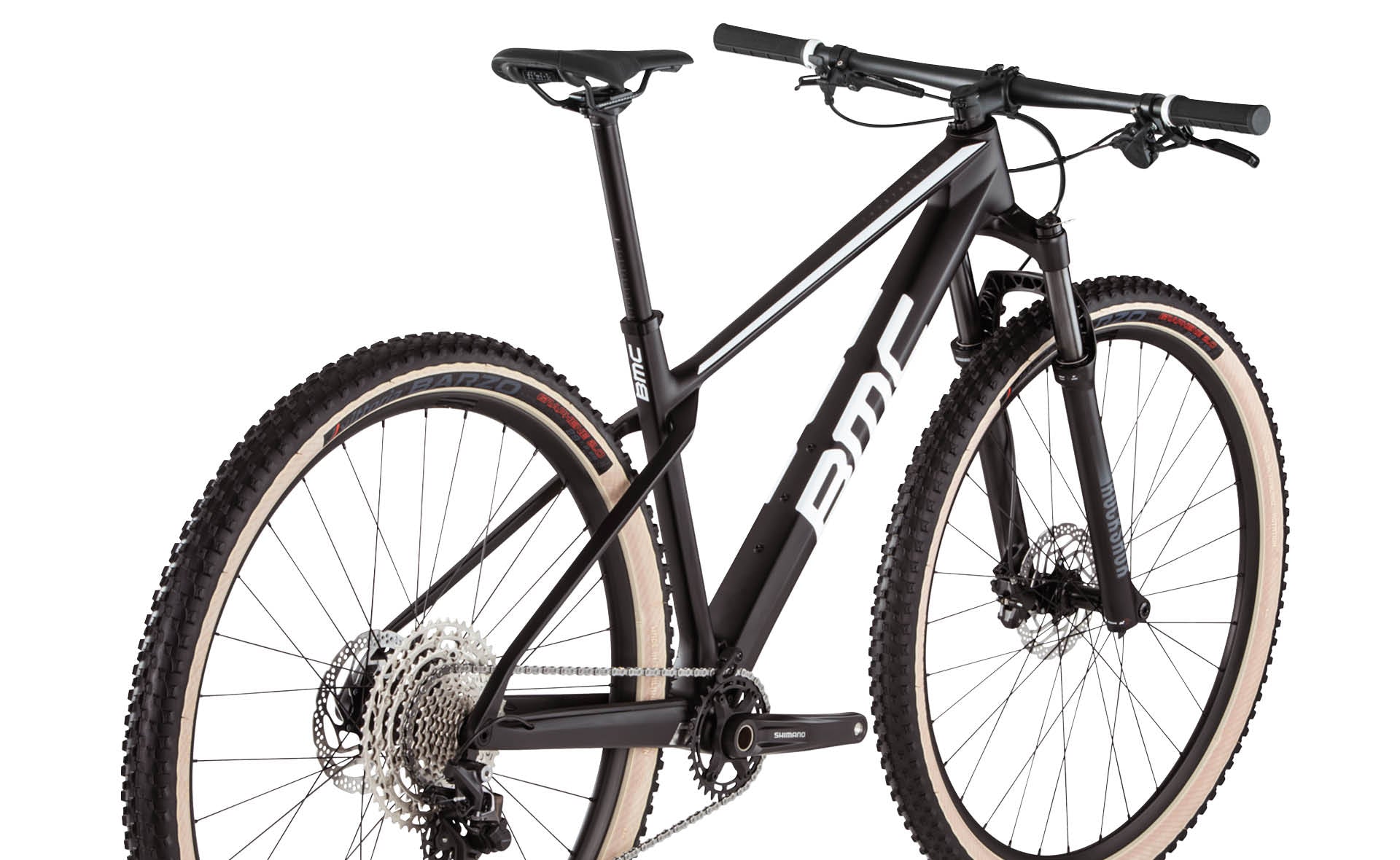

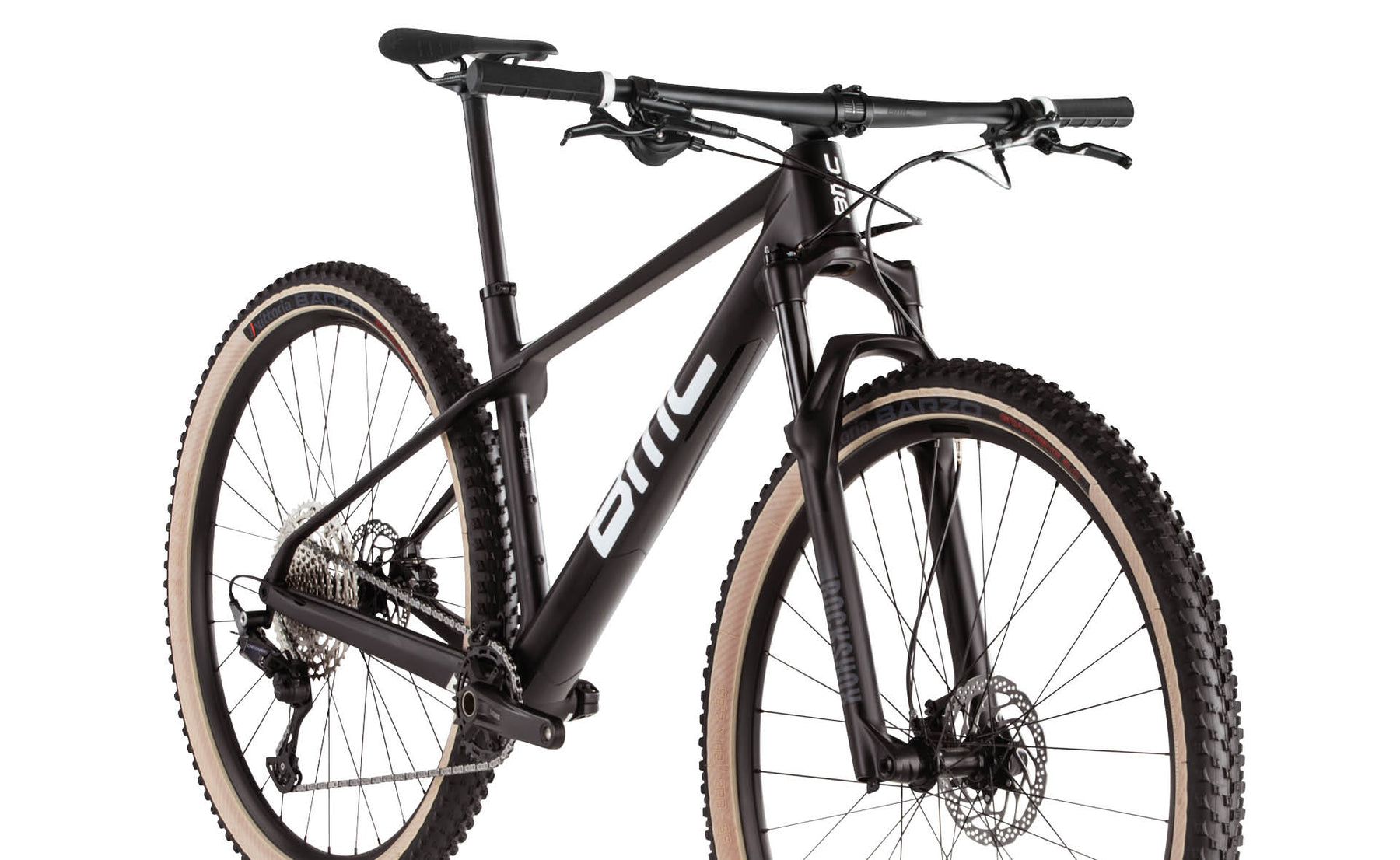

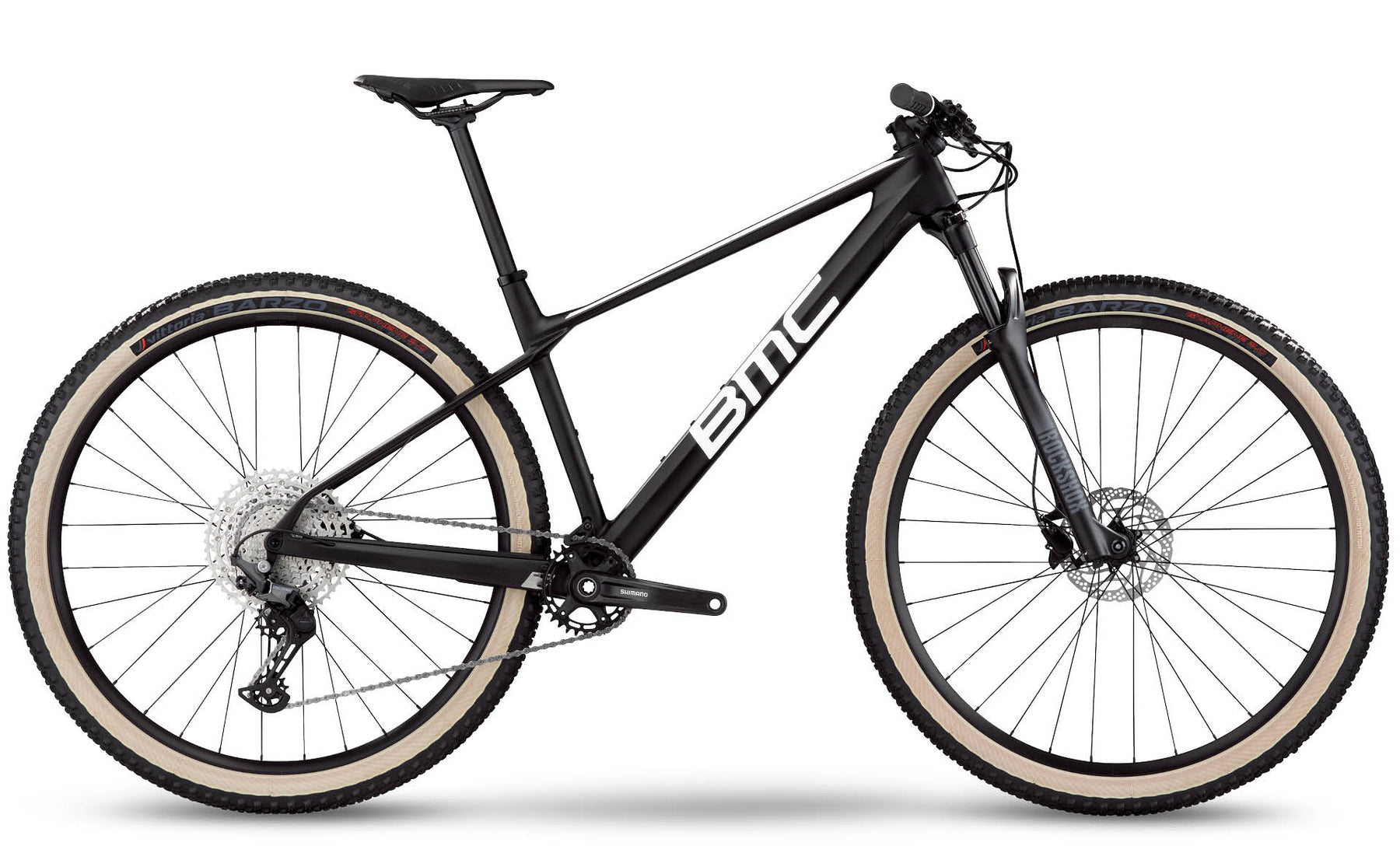

Twostroke 01 FIVE

CARBON / WHITE

Transmisión Shimano Deore 12 vel.
Horquilla RockShox Judy TK R
Ruedas SHL28OS

Precio habitualCHF 2,399.00
/
Impuesto incluido.

SKU: 30002608
Talla

Twostroke 01 FIVE

Piezas y accesorios

La Twostroke 01 è una hardtail veloce progressiva, confortevole e che ispira fiducia. Il suo telaio in carbonio TCC-designed ha una geometria rivoluzionaria per terreni ripidi e sconnessi, un ampio spazio per gli pneumatici, un fermo forcella integrato e una protezione per il telaio, oltre al cablaggio interno e alla predisposizione per un dropper post. Una forcella RockShox Judy TK R, un manubrio in lega, una trasmissione Shimano Deore a 12 velocità con freni MT200 e ruote SHL280S equipaggiano questa introduzione a Twostroke in carbonio.

Tecnología

Descripción técnica

Cuadro

Cuadro:
Twostroke 01 Premium Carbon with Tuned Compliance Concept XC | Fully Guided Internal Cable Routing | PF92 Bottom Bracket | Post Mount Disc | 12x148mm Boost Thru-Axle

Cockpit

Manillar:
BMC MFB03 Alloy 750mm

Potencia:
Forged 6061 Alloy

Tija de Sillín:
BMC MSP03 - 27.2mm - 0mm Offset (D-Shaped Insert)

Sillín:
Fizik Antares R7

Transmisión

Marchas:
1x12

Platos y Bielas:
SHIMANO FC-MT510-1 32T

Cassette:
SHIMANO Deore CS-M6100 12 spd 10-51T

Cadena:
SHIMANO Deore CN-M6100 12 spd

Cambio Trasero:
SHIMANO Deore RD-M6100 12 spd

Manetas de Cambio:
SHIMANO Deore SL-M6100 12 spd

Suspensión

Suspensión Delantera:
Rockshox Judy Silver TK - PopLoc Remote

Frenos

Pinzas de Freno:
SHIMANO BL-MT200 Levers | BR-MT200 Calipers

Discos:
SHIMANO SM-RT30 (160 / 160 S-M - 180 / 160 L-XL)

Ruedas

Llantas:
SHL28OS - 25mm Inner Width

Bujes:
SHIMANO HB-MT400-B / FH-MT410-B

Neumáticos:
Vittoria Barzo 2.25"

Información adicional

Anchura Máx. de Neumático:
58mm (Measured Width)

Clasificación ASTM:
Level 3

Límite de Peso:
110 Kg

SizeSMLXL
Rider Height162-172170-180178-188>188
Reach422.5445465485
Stack588598608623
Bar Drop
Bar Reach
Bar Rise4444
Bar Sweep8888
Bar Width750750750750
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop64646464
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170175175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length505505505505
Fork Rake44444444
Frame Size
Front Center696715741767
Front Center (SLACK)
Front Center (STEEP)
Head Tube8793.5106122.5
Head Tube Angle67676767
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center425425425425
Saddle Height Range
Seat Angle75757575
Seat Tube410440480510
Seatpost Drop
Seatpost Length380430430430
Seatpost Offset
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height725730735750
Stem Angle±6±6±6±6
Stem Length45606070
Top Tube597618638658
Top Tube (SLACK)
Top Tube (STEEP)
Trail109109109109
Wheelbase1112.5113511611185
Wheelbase (SLACK)
Wheelbase (STEEP)
