Name: Roadmachine 01 AMP ONE
Brand: BMC
SKU: 30007140
Price: 8999.0 CHF
Availability: OutOfStock

Metallic White

Amplify every road ride with the superb performance of the Roadmachine 01 frameset, TQ-HPR60 e-bike system, SHIMANO Ultegra Di2 and CE 40 SL carbon wheels.

CHF 8,999.00

SKU: 30007140

Size —

Low stock - 2 items left
Inventory on the way

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":55530737729922,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30007135","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 47","public_title":"47","options":["47"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524213","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55530737762690,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30007136","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 51","public_title":"51","options":["51"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524206","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55530737795458,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30007137","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 54","public_title":"54","options":["54"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524190","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55530737828226,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30007138","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 56","public_title":"56","options":["56"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524183","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55530737860994,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30007139","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 58","public_title":"58","options":["58"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524176","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55530737893762,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30007140","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 61","public_title":"61","options":["61"],"price":899900,"weight":20,"compare_at_price":null,"inventory_quantity":2,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906524268","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Amplified for the long haul. Designed to ride further, faster, and with less effort, the Roadmachine 01 AMP continues the Roadmachine legacy with advanced e-road innovation. Powered by the light and silent TQ-HPR60 newest drive unit, fully integrated into our Premium Carbon frame, it delivers silent, smooth, natural assistance without compromising on ride feel. Our Roadmachine 01 geometry will position you in a slightly more upright position to keep you fresh while pushing the pedals on your longest rides. Outfitted with SHIMANO Ultegra Di2 1x shifting, Praxis cranks, CE 40 SL Carbon wheels, and the ICS2 stem, it’s the perfect companion for riders chasing real-world endurance with extra support.

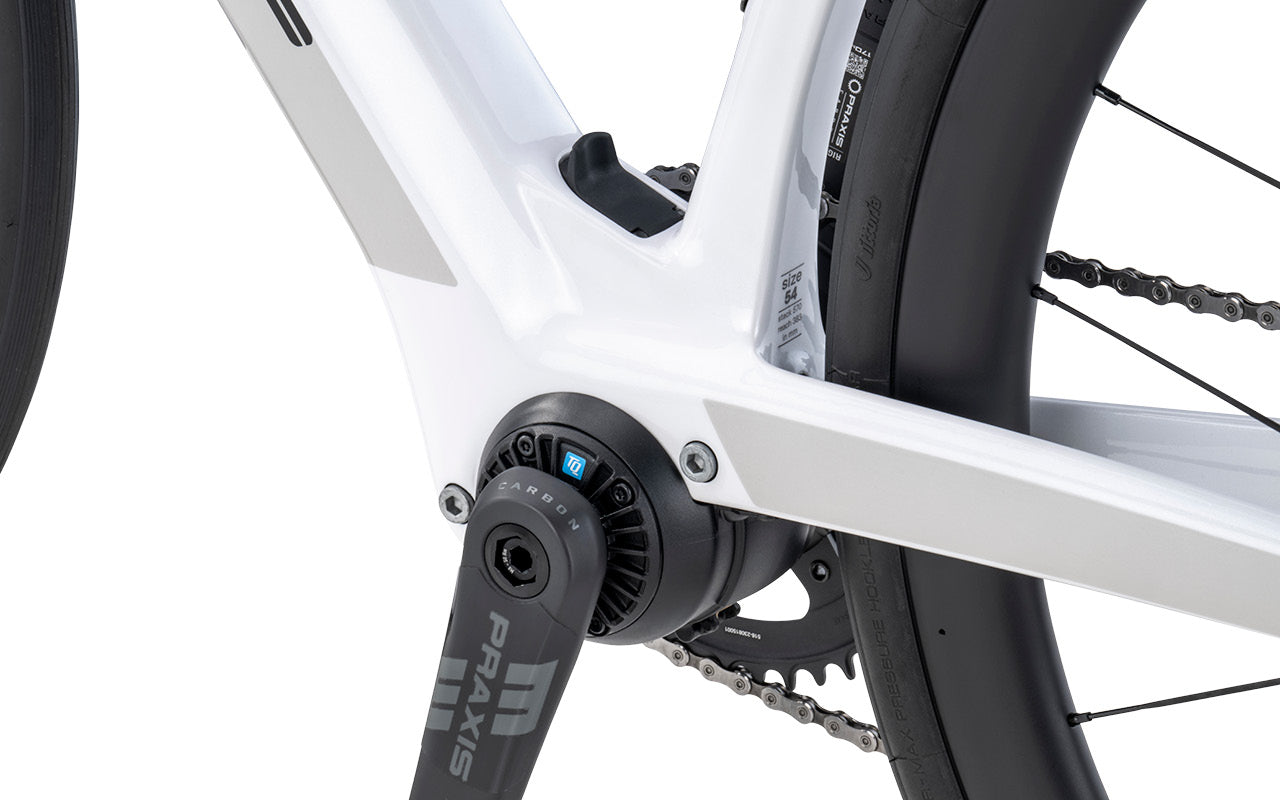

Hidden Power

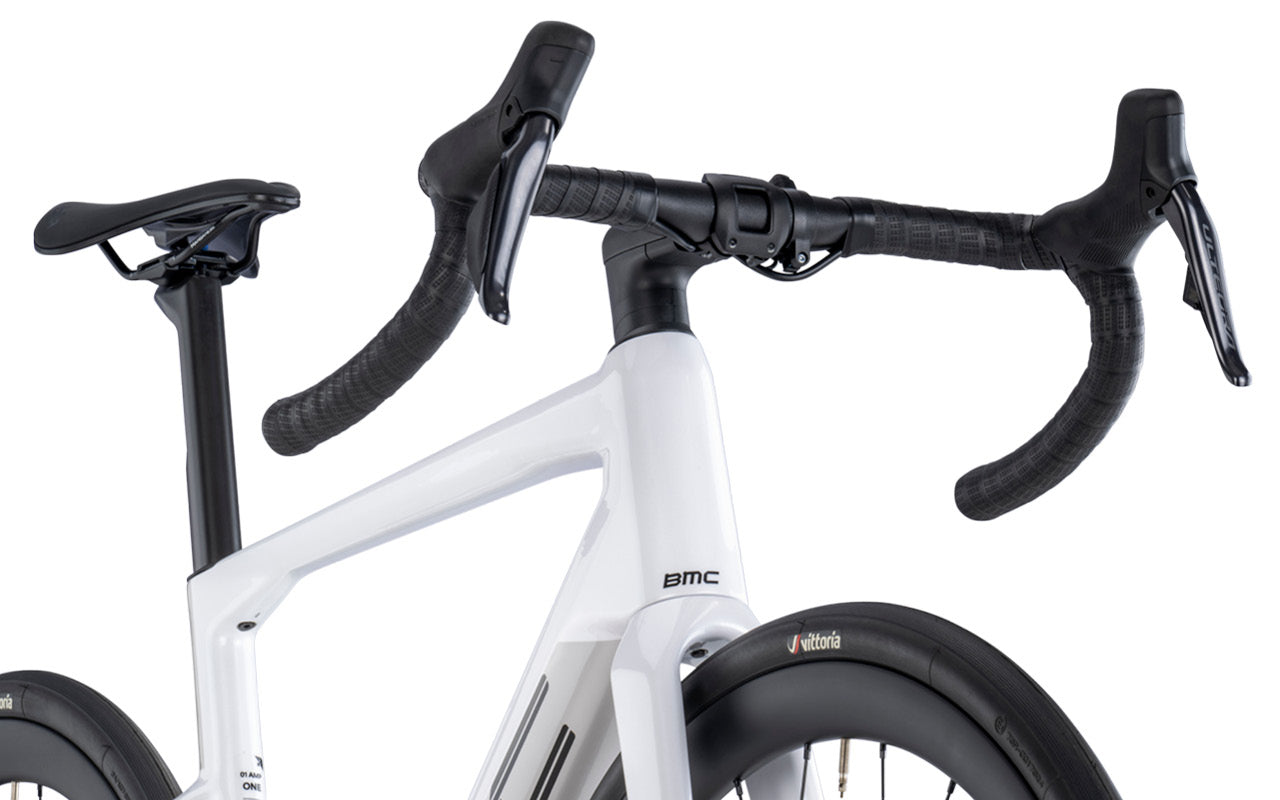

innovationFast and Forgiving

The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.

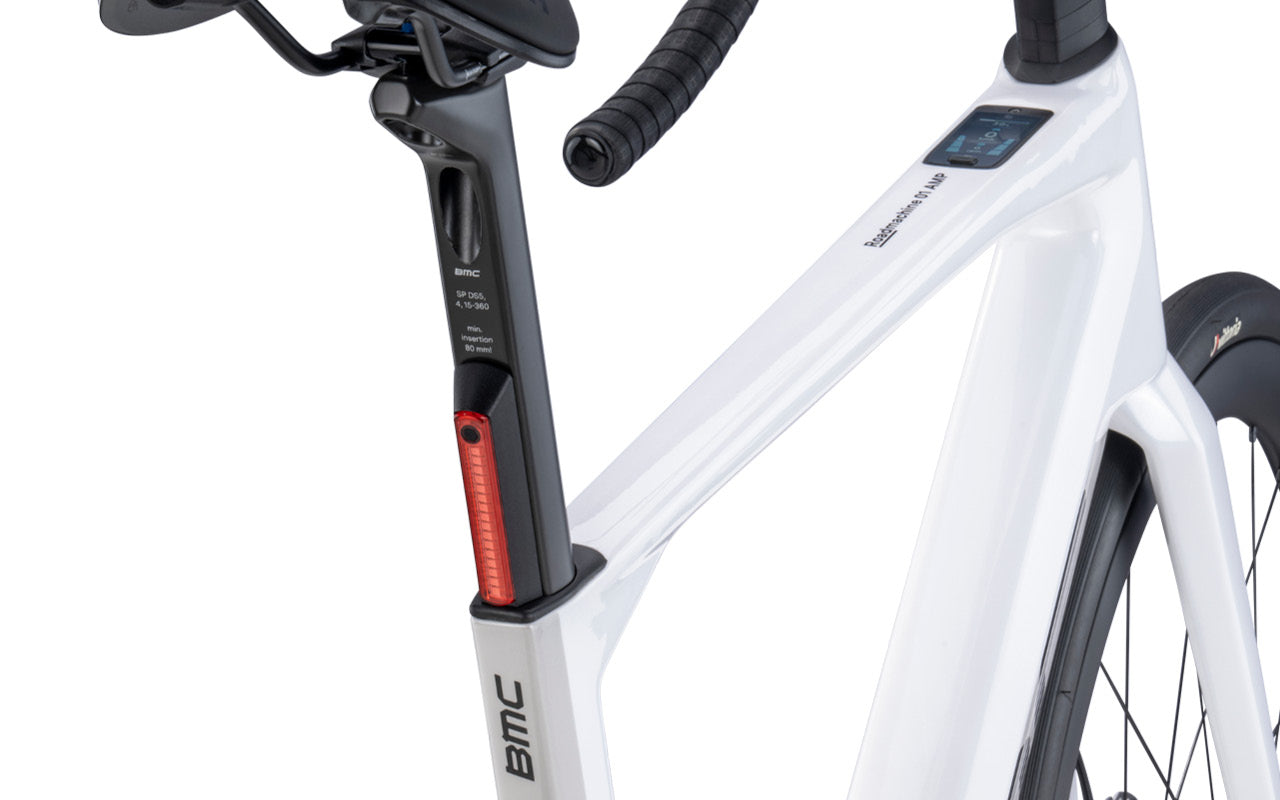

Safety First

Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light.

Safety First

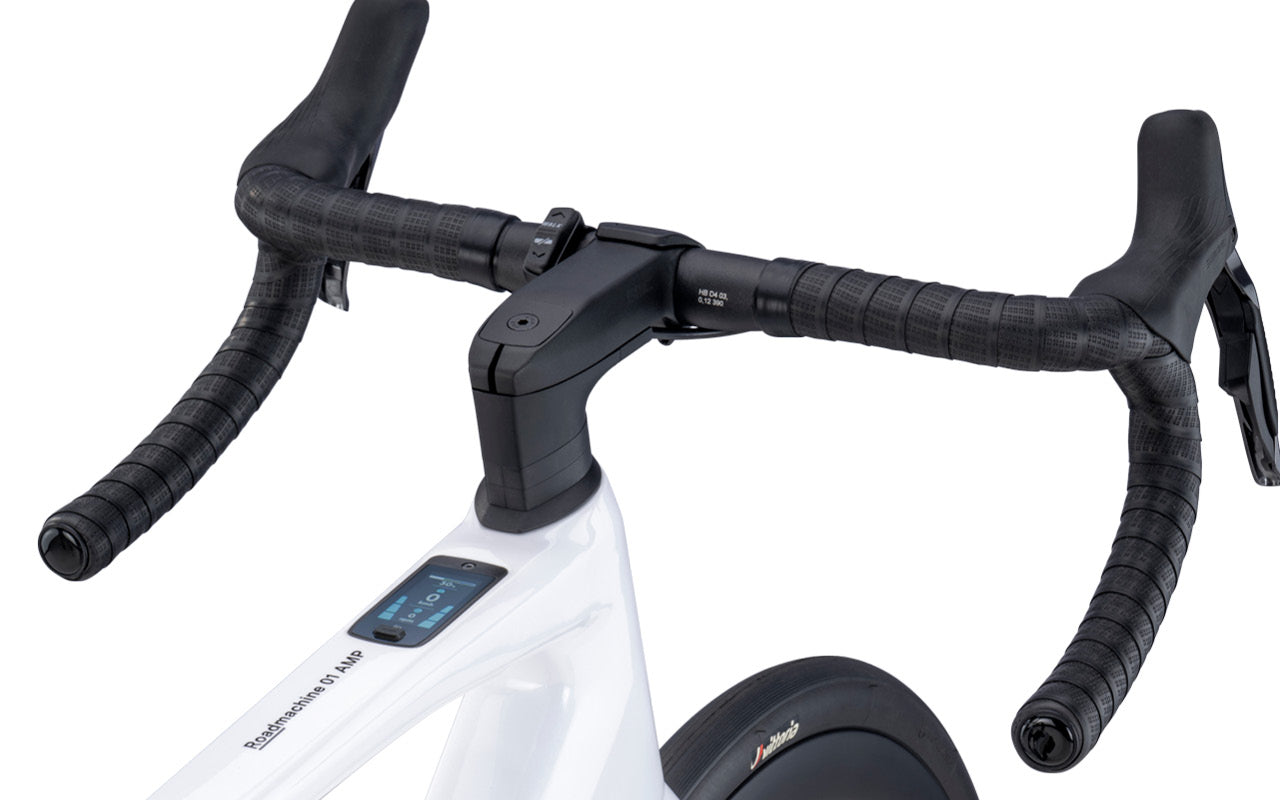

Integrated Cockpit System (ICS2)

ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.

Technical Overview

Frameset

Fork:
Roadmachine 01 AMP | 01 Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle

E-System

Drive Unit:
TQ-HPR60 Drive Unit

Battery Pack:
TQ Battery | 360 Wh | Certified by UL LLC

Display:
TQ Grafic color Display | 2" O-LED | Bluetooth / ANT+

Drive Unit Control:
TQ Remote

Charger:
TQ 4A Charger

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare

Seat

Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Selle Italia Novus Boost Evo Superflow | Manganese Rail | 145mm

Drivetrain

Crankset:
Praxis Type-4 Carbon Road eCrank | 49mm chainline

Chainrings:
Praxis e44T 110BCD

Cassette:
SHIMANO Ultegra (CS-R8101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M8100

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO Ultegra (RT-CL800)

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
CE 40 SL Carbon | Tubeless Ready | 40mm

Hubs (F/R):
TXC-812 & TXC-240 Center Lock

Tires:
Vittoria Corsa N.EXT | Tubeless | 34mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Integrated Rear Light

Additional Information

Tire Clearance:
38mm measured tire

Weight without Pedals:
12.7kg | Size 54 as pictured with all accessories

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<162	162-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	390/448	390/448	390/448	410/468	410/468	430/488
BB Drop	75	75	75	75	75	75
Crank Length	170	170	170	170	170	170
Fork Length	380	380	380	380	380	380
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4°	71.4°	72.2°	72.2°	72.2°	72.2°
Rear Center	420	420	420	420	420	420
Seat Angle	74.2°	74.2°	74.2°	74.2°	74.2°	74.2°
Seat Tube	420	460	500	525	545	575
Seatpost Length	330	380	380	380	380	430
Seatpost Offset	15	15	15	15	15	15
Standover Height	728	755	786	810	829	850
Stem Angle	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°
Stem Length	80	90	100	100	110	110
Top Tube	519	535	544	556	568	581
Trail	63	63	63	63	63	63
Wheelbase	987	1005	1002	1015	1028	1041
