BMC-23-10604-014

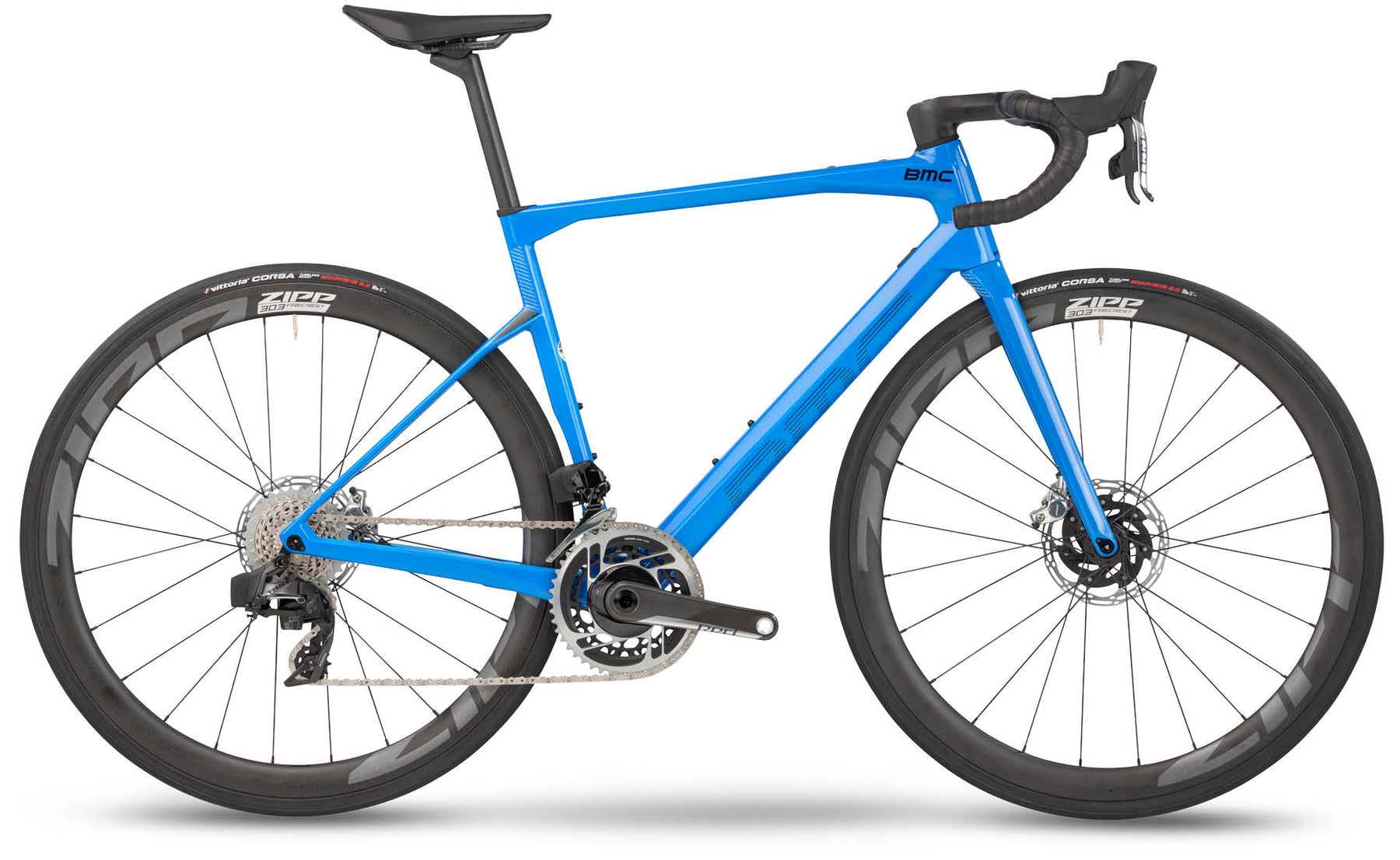

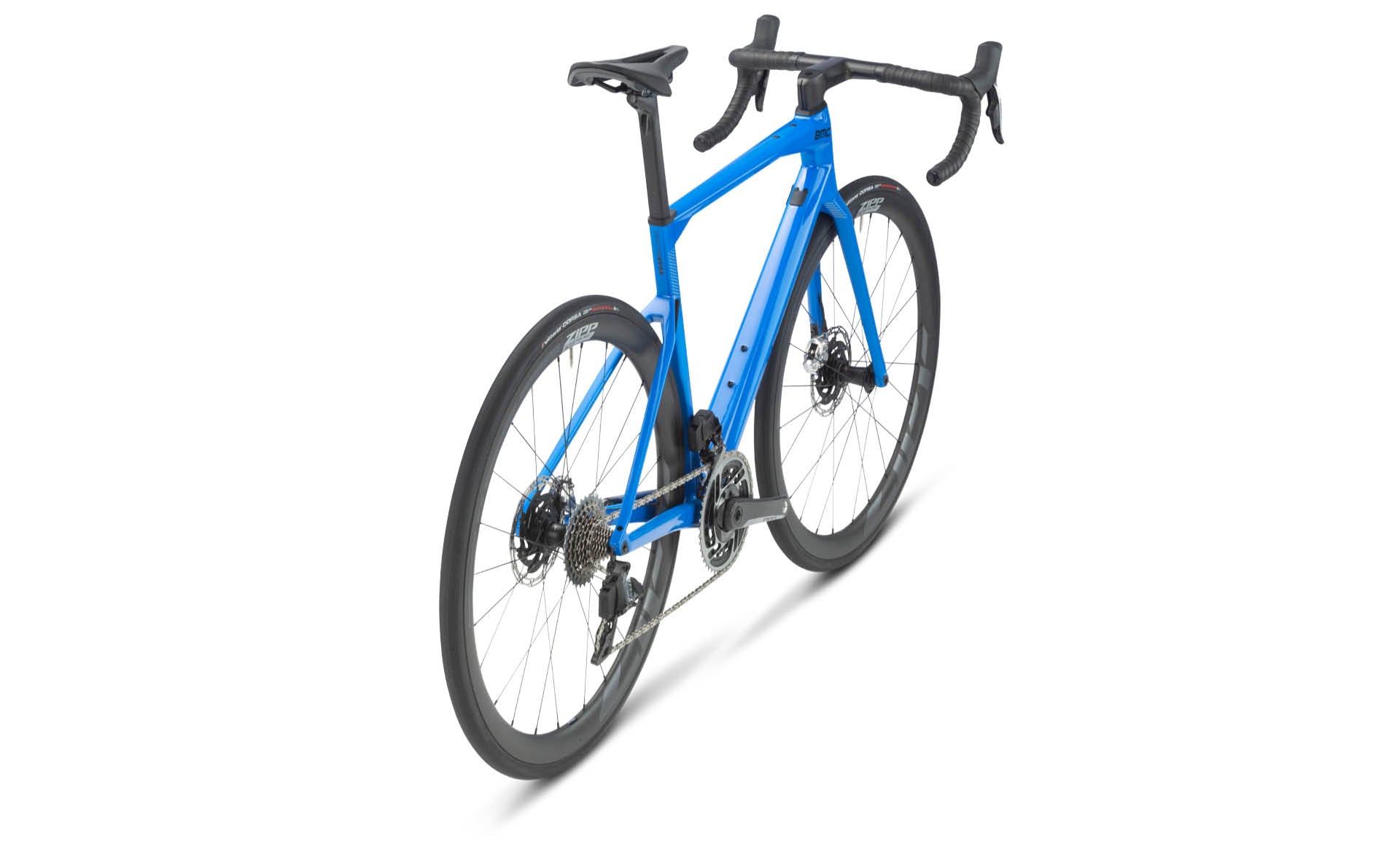

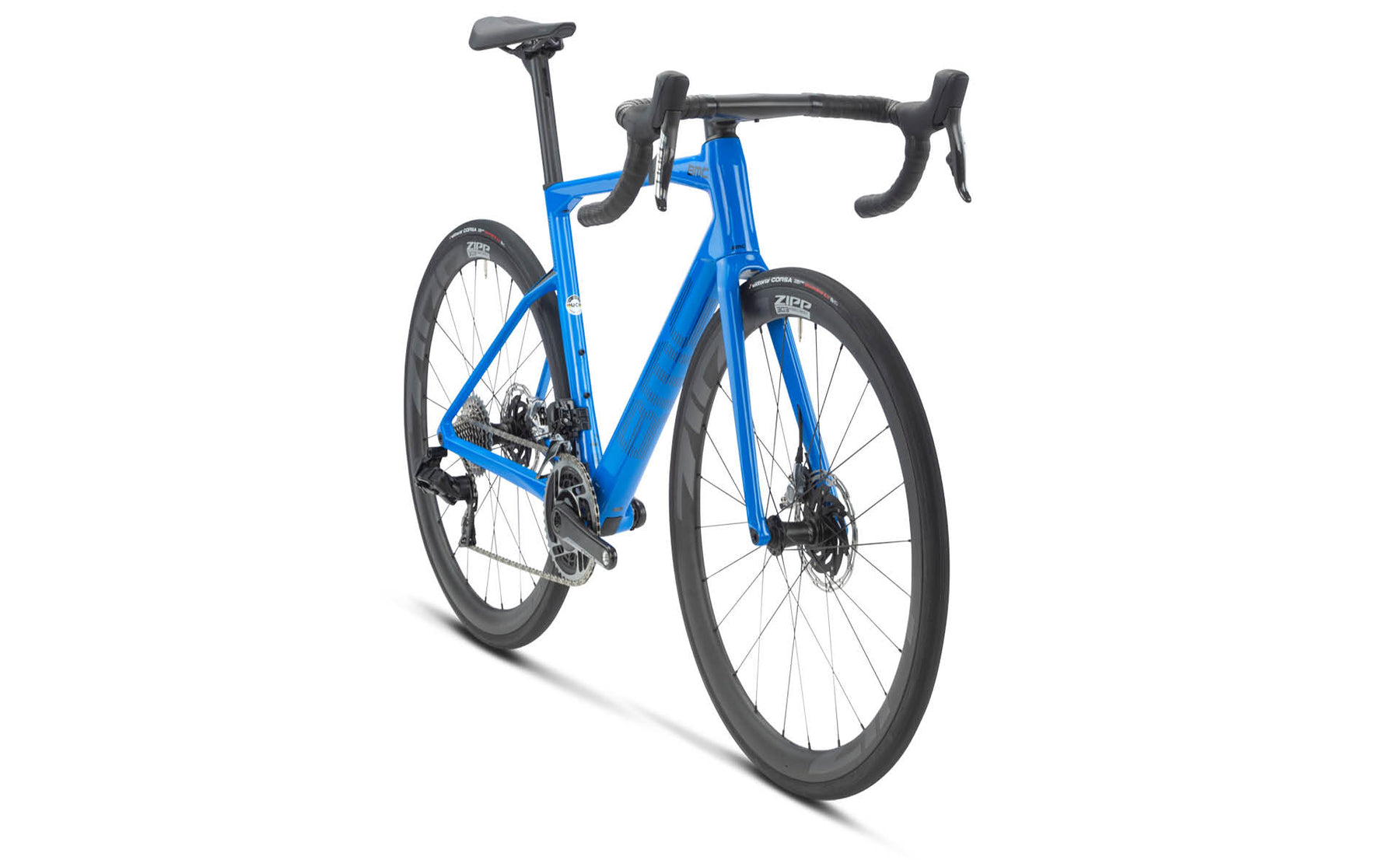

Roadmachine 01 ONE

TRUE BLUE / BLACK

SRAM RED eTap AXS Drivetrain
Zipp 303 Firecrest Tubeless Disc Wheelset
ICS Carbon Cockpit and Premium Carbon D-Shape Seatpost

Regular priceCHF 12,999.00
/
Tax included.

SKU: 30002383
Size

Roadmachine 01 ONE

Parts & Accessories

The extraordinarily capable Roadmachine 01 combines relentless speed with indulgent comfort, so you can go further, faster. This road bike has a Premium Carbon frame and fork designed using TCC Endurance technology, and features ICS technology, Stealth Cable Routing and a Premium Carbon D-Shape seatpost. From its ICS one-piece Carbon cockpit to its SRAM RED eTap groupset and iconic Zipp 303 Firecrest, this build is ready for the long haul.

Technology

Technical Overview

Frameset

Frame:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

Fork:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle |

Cockpit

Handlebar:
ICS Carbon - One-Piece Full Carbon Cockpit

Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost

Saddle:
Fizik Argo Vento R5 (140mm)

Drivetrain

Gears:
2x12

Crankset:
SRAM RED 46-33T

Cassette:
SRAM RED XG-1290 10-33T

Chain:
SRAM RED 12 Speed

Front Derailleur:
SRAM RED eTap AXS

Rear Derailleur:
SRAM RED eTap AXS

Shifters:
SRAM RED eTap AXS HRD

Brakes

Brake Levers / Calipers:
SRAM RED eTap AXS HRD

Rotors:
SRAM Centerline XR 160 / 160mm

Wheels

Rims:
Zipp 303 Firecrest Tubeless Disc

Hubs (F/R):
Zipp ZR1 DB

Tires:
Vittoria Corsa N.EXT - 28mm

Additional Information

Tire Clearance:
33mm (Measured Width)

ASTM Classification:
Level 1

Weight Limit:
110 Kg

Size475154565861
Rider Height<166166-174172-180178-186184-192>190
Reach374382386390394398
Stack516541562586610644
Bar Drop127127127127127127
Bar Reach676767676767
Bar Rise
Bar Sweep
Bar Width400420420420420420
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop717171717171
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length375375375375375375
Fork Rake505045454545
Frame Size
Front Center583599597609621635
Front Center (SLACK)
Front Center (STEEP)
Head Tube112139156181206242
Head Tube Angle71.271.272727272
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center410410410410410410
Saddle Height Range
Seat Angle74.274.274.274.274.274.2
Seat Tube420457500522539573
Seatpost Drop
Seatpost Length330380380380380430
Seatpost Offset151515151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height719750782805825859
Stem Angle-12.5-12.5-12.5-12.5-12.5-12.5
Stem Length90100100110110120
Top Tube522532546556568583
Top Tube (SLACK)
Top Tube (STEEP)
Trail636363636363
Wheelbase982999997100810201035
Wheelbase (SLACK)
Wheelbase (STEEP)
