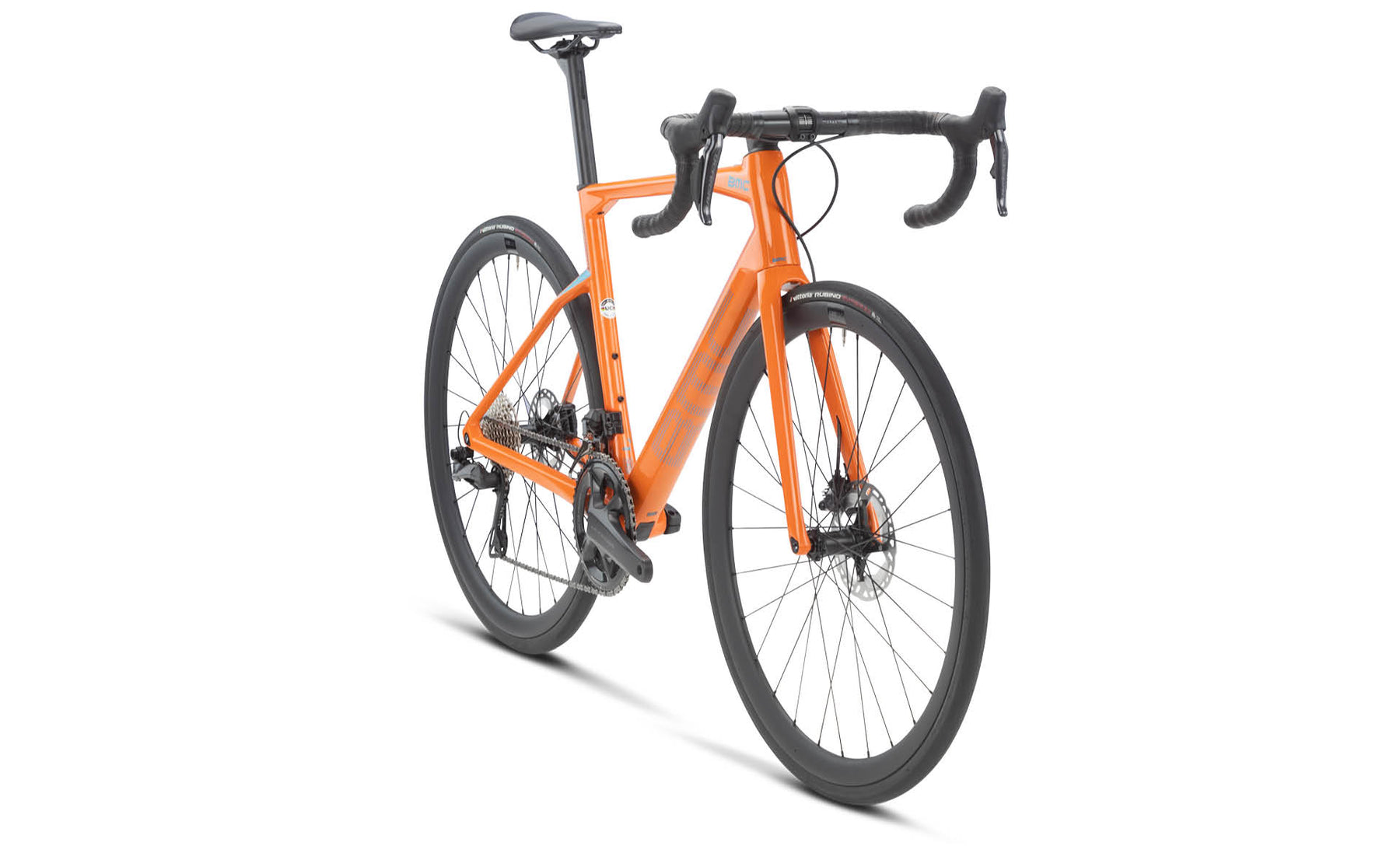

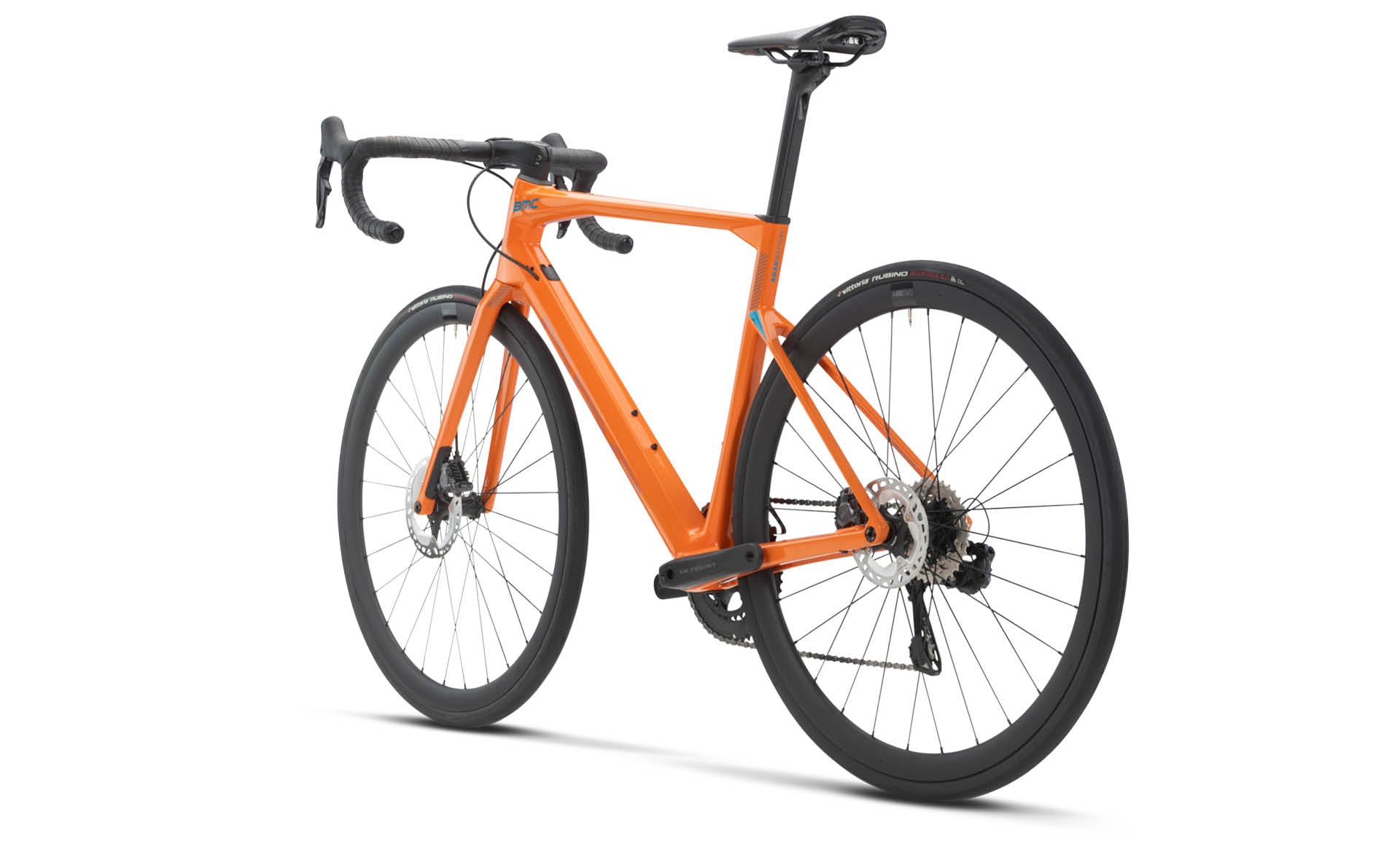

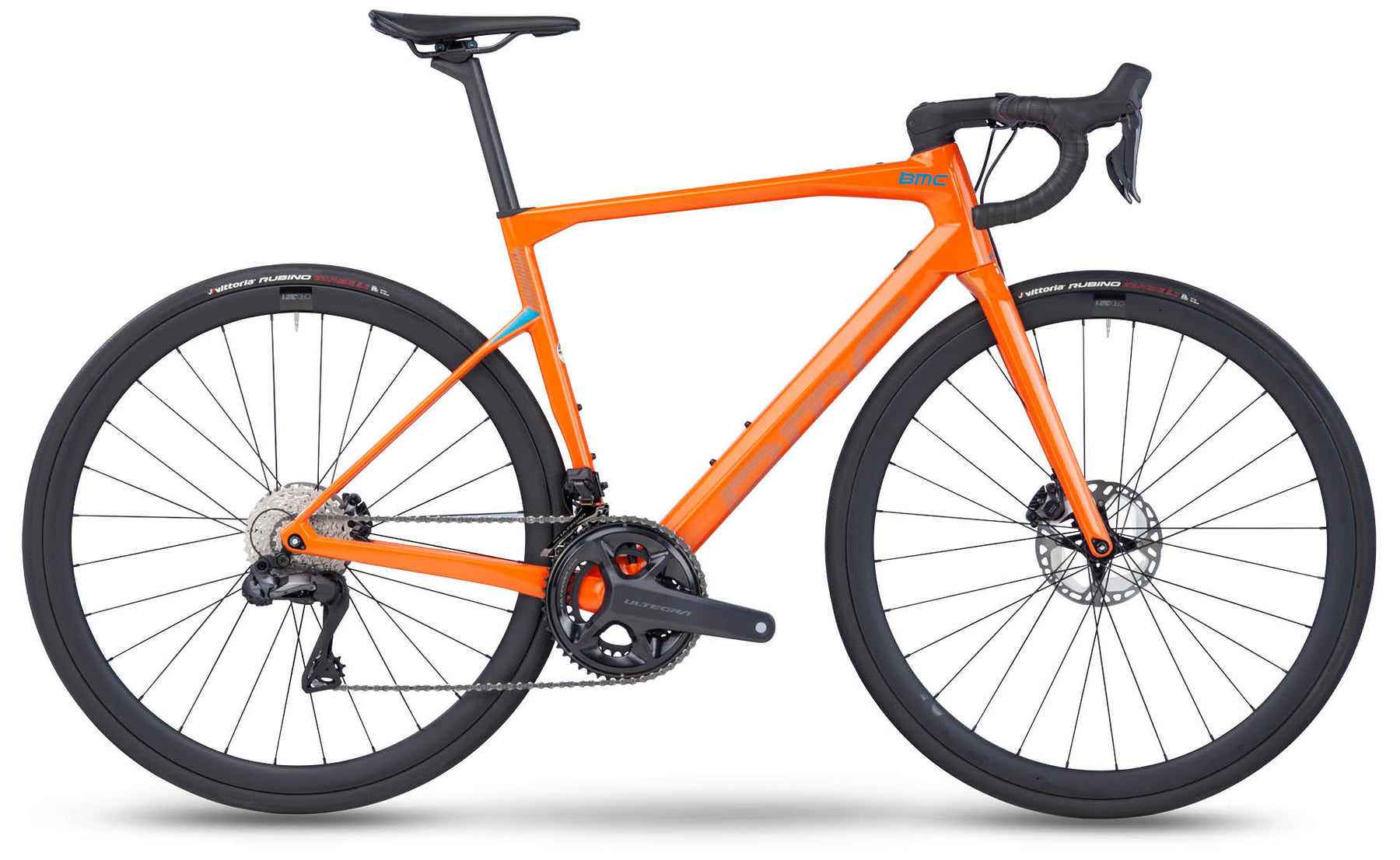

Name: Roadmachine ONE
Brand: BMC
SKU: 30002419
Price: 6999.0 CHF
Availability: OutOfStock

Roadmachine ONE | BMC | bikes | Road, Road | Endurance

Apricot / Petrol Blue

Shimano Ultegra Di2 Drivetrain
CRD-321 Carbon Wheelset
ICS1 Integrated Cockpit Design and Premium Carbon D-Shape Seatpost

CHF 6,999.00

SKU: 30002419

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40922410909775,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30002419","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 47","public_title":"47","options":["47"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884647","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922410942543,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30002420","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 51","public_title":"51","options":["51"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884739","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922410975311,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30002421","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 54","public_title":"54","options":["54"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884821","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922411008079,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30002422","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 56","public_title":"56","options":["56"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884814","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922411040847,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30002423","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 58","public_title":"58","options":["58"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884807","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40922411073615,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30002424","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine ONE - 61","public_title":"61","options":["61"],"price":699900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027884791","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

The Roadmachine’s frame and fork are constructed in our Premium Carbon with all the benefits of the built-in TCC Endurance technology. Internal cable routing gives a clean aesthetic to this road bike, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. This model has an ICS1 stem, compact aluminium bars, and Shimano’s latest Ultegra Di2 12-speed compact groupset, with CRD-321 Carbon tubeless-ready wheels and 28mm tires for comfort and traction.

Technology

Tuned Compliance Concept (TCC) Endurance

The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.

Integrated Cockpit System (ICS)

The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place: out of sight.

D-Shape Seatpost

The new D-Shape compliance post’s carbon layup was designed using TCC Endurance technology for tailored comfort.

Integrated Seat Clamp

The seamless and functional integrated seatpost clamp is hidden within the frame.

Technical Overview

Frameset

Frame:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Stem:
BMC ICS1 | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine Premium Carbon D-Shaped Seatpost

Saddle:
Fizik Taiga

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
50-34T

Cassette:
SHIMANO Ultegra (CS-R8100)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO RT-MT800

Rotor Size (F/R):
160 / 140mm

Wheels

Rims:
CRD-321 Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-321

Tires:
Vittoria Rubino | 28mm

Additional Information

Tire Clearance:
33mm

ASTM Classification:
Level 2

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	374	382	386	390	394	398
Stack	516	541	562	586	610	644
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	400	420	420	420	420	440
BB Drop	71	71	71	71	71	71
Crank Length	170	170	172.5	172.5	175	175
Fork Length	375	375	375	375	375	375
Fork Rake	50	50	45	45	45	45
Front Center	583	599	597	609	621	635
Head Tube	112	139	156	181	206	242
Head Tube Angle	71.2	71.2	72	72	72	72
Rear Center	410	410	410	410	410	410
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	420	457	500	522	539	573
Seatpost Length	330	380	380	380	380	430
Seatpost Offset	15	15	15	15	15	15
Standover Height	719	750	782	805	825	859
Stem Angle	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Stem Length	90	90	100	110	110	120
Top Tube	522	532	546	556	568	583
Trail	63	63	63	63	63	63
Wheelbase	982	999	997	1008	1020	1035
