BMC-23-10605-013

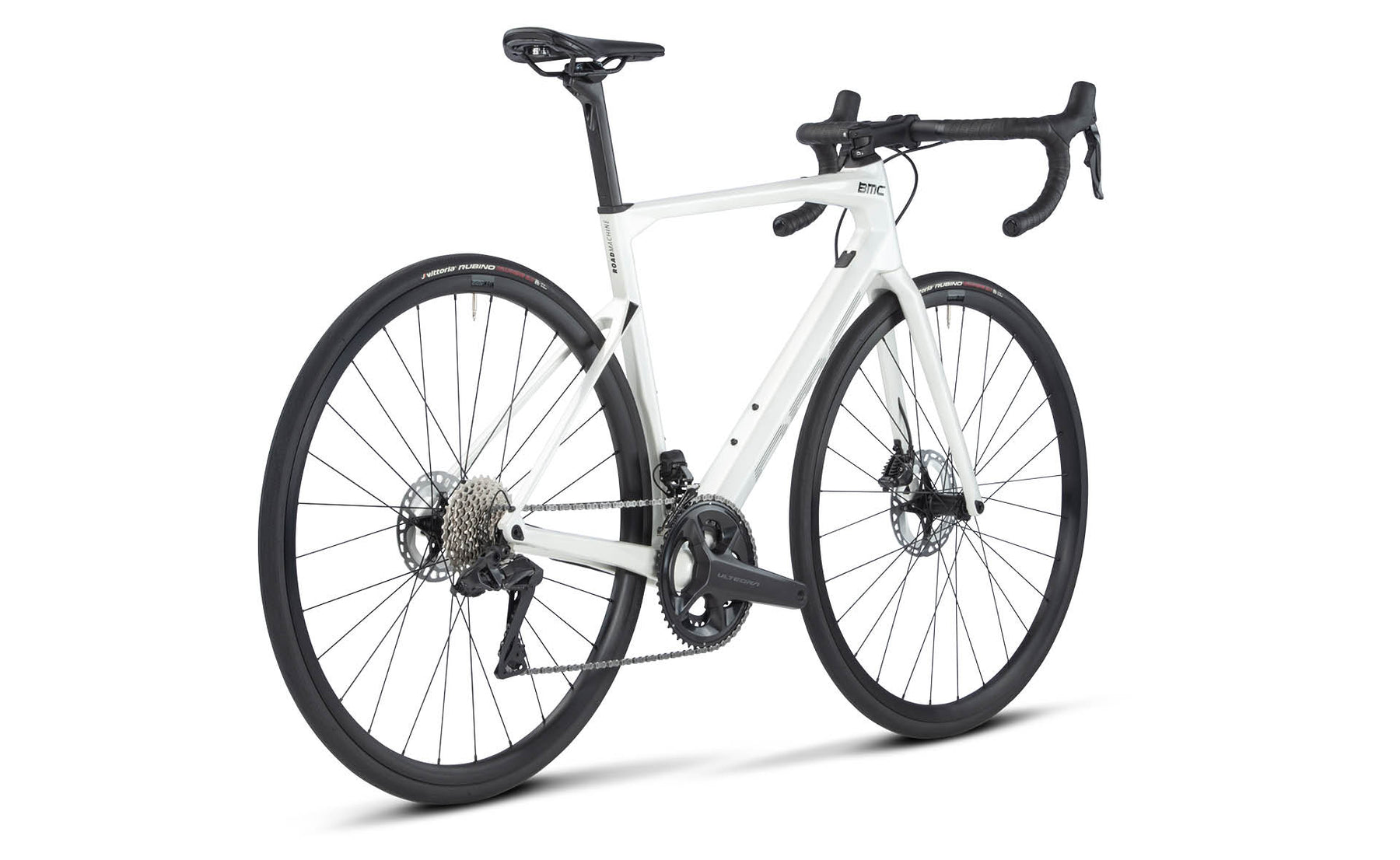

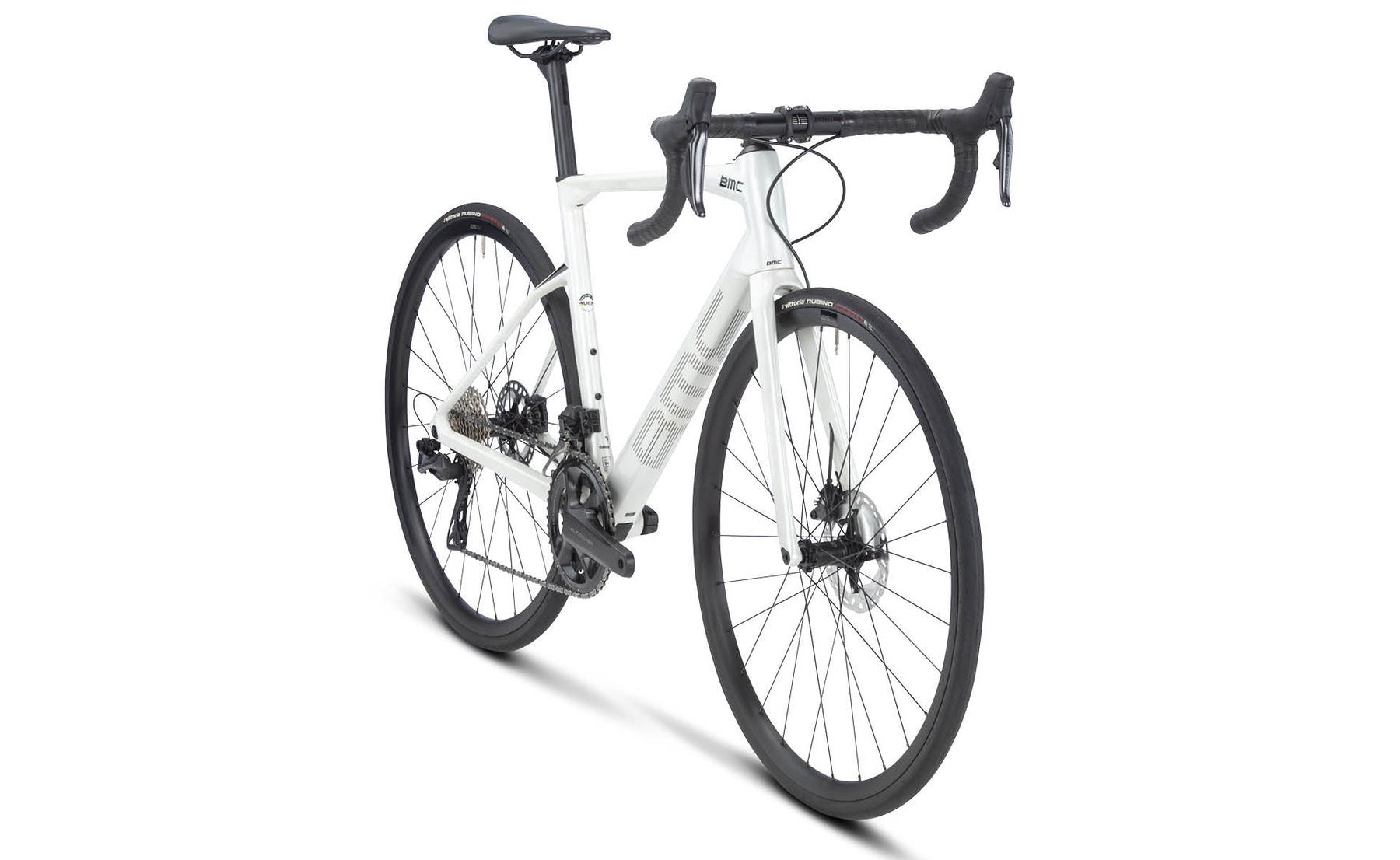

Roadmachine THREE

METALLIC OFF-WHITE / BLACK

Shimano Ultegra Di2 Drivetrain
XRD-522 Wheelset
Integrated Cable Routing and Carbon D-Shape Seatpost

Regular priceCHF 5,699.00
/
Tax included.

SKU: 30002431
Size

Roadmachine THREE

Parts & Accessories

The Roadmachine’s frame and fork are constructed in our Premium Carbon with all the benefits of the built-in TCC Endurance technology. Internal cable routing gives a clean aesthetic to this road bike, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. The Roadmachine THREE’s compact aluminium cockpit and XRD-522 tubeless-ready wheelset with 28mm tires are propelled by Shimano’s Ultegra Di2 12-speed compact groupset.

Technology

Technical Overview

Frameset

Frame:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

Fork:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle

Cockpit

Handlebar:
BMC RAB 03 - Ergo Top Shape - Compact Bend

Stem:
BMC RSM01

Seatpost:
Roadmachine Premium Carbon D-Shaped Seatpost

Saddle:
Fizik Taiga

Drivetrain

Gears:
2x12

Crankset:
SHIMANO Ultegra FC-R8100 12spd 50-34T

Cassette:
SHIMANO Ultegra CS-R8100 12spd 11-34T

Chain:
SHIMANO Ultegra CN-M8100 12spd

Front Derailleur:
SHIMANO Ultegra Di2 FD-R8150 12spd

Rear Derailleur:
SHIMANO Ultegra Di2 RD-R8150 12spd

Shifters:
SHIMANO Ultegra Di2 ST-R8170 12spd

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra BR-R8170

Rotors:
SHIMANO RT-MT800 160 / 140mm

Wheels

Rims:
XRD-522 - Tubeless Ready - 25mm

Hubs (F/R):
XRD-522

Tires:
VITTORIA RUBINO - 28mm

Additional Information

Tire Clearance:
33mm (Measured Width)

ASTM Classification:
Level 2

Weight Limit:
110 Kg

Size475154565861
Rider Height<166166-174172-180178-186184-192>190
Reach374382386390394398
Stack516541562586610644
Bar Drop125125125125125125
Bar Reach707070707070
Bar Rise
Bar Sweep
Bar Width400420420420420440
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop717171717171
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length375375375375375375
Fork Rake505045454545
Frame Size
Front Center583599597609621635
Front Center (SLACK)
Front Center (STEEP)
Head Tube112139156181206242
Head Tube Angle71.271.272727272
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center410410410410410410
Saddle Height Range
Seat Angle74.274.274.274.274.274.2
Seat Tube420457500522539573
Seatpost Drop
Seatpost Length330380380380380430
Seatpost Offset151515151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height719750782805825859
Stem Angle±8±8±8±8±8±8
Stem Length9090100110110120
Top Tube522532546556568583
Top Tube (SLACK)
Top Tube (STEEP)
Trail636363636363
Wheelbase982999997100810201035
Wheelbase (SLACK)
Wheelbase (STEEP)
