Teammachine R 01 FIVE

Cool White / Black

Every detail counts when every pedal stroke matters. This road bike is engineered with victory in mind, designed to claim the highest spot on the podium.

Regular priceCHF 6,999.00
CHF /

SKU: 30006853
Size
  • In stock, ready to ship
  • Inventory on the way
  • Shipped to your local bike shop
Unleashing Performance Beyond Limits. Every pedal stroke matters. Engineered in collaboration with Red Bull Advanced Technologies, the Teammachine R 01 FIVE carbon road bike sets a new benchmark for racing excellence. Designed to perform under the most demanding conditions, this racing bike comes equipped with a Shimano 105 Di2 Drivetrain, aero optimized CR 50 Carbon wheelset, and BMC’s cutting-edge ICS Aero one piece Cockpit. Experience unparalleled speed and precision every race day of your season.

Technology

Technical Overview

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

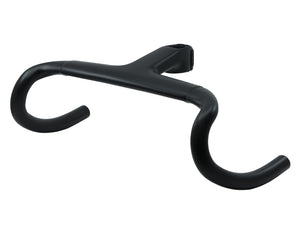

Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | Manganese Rail | 145mm

Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
52-36T

Cassette:
SHIMANO 105 (CS-R7101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press Fit SM-BB72

Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CR 50 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Centerlock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.8kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
Bar Drop 135 135 135 135 135 135
Bar Reach 77 77 77 77 77 77
Bar Width 360/420 360/420 360/420 360/420 360/420 360/420
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 185 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Standover Height 721 755 781 799 813 836
Stem Angle -15 -15 -15 -15 -15 -15
Stem Length 90 100 100 110 110 120
Top Tube 522 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
