From kilos to pursuits, madisons to scratch races, the Trackmachine 01 is made to do one job well: go fast on the boards.
Designed as a collaboration between the BMC Impec Lab and Swiss Cycling, it brings our aerodynamic engineering together with our high-grade 01 Premium Carbon layup in a frameset that works across all track events.
The wide-leg Halo fork manages airflow at speed, while adjustable steel rear dropouts allow exact setup for different race demands. A threaded bottom bracket ensures reliability through repeated efforts, and the aerodynamic seatpost supports a stable, power-driven position.
Compatible with any 1⅛” stem or BMC base bar, the Trackmachine is not dramatic. It is exact. And that’s why it wins.
Technology
Halo +

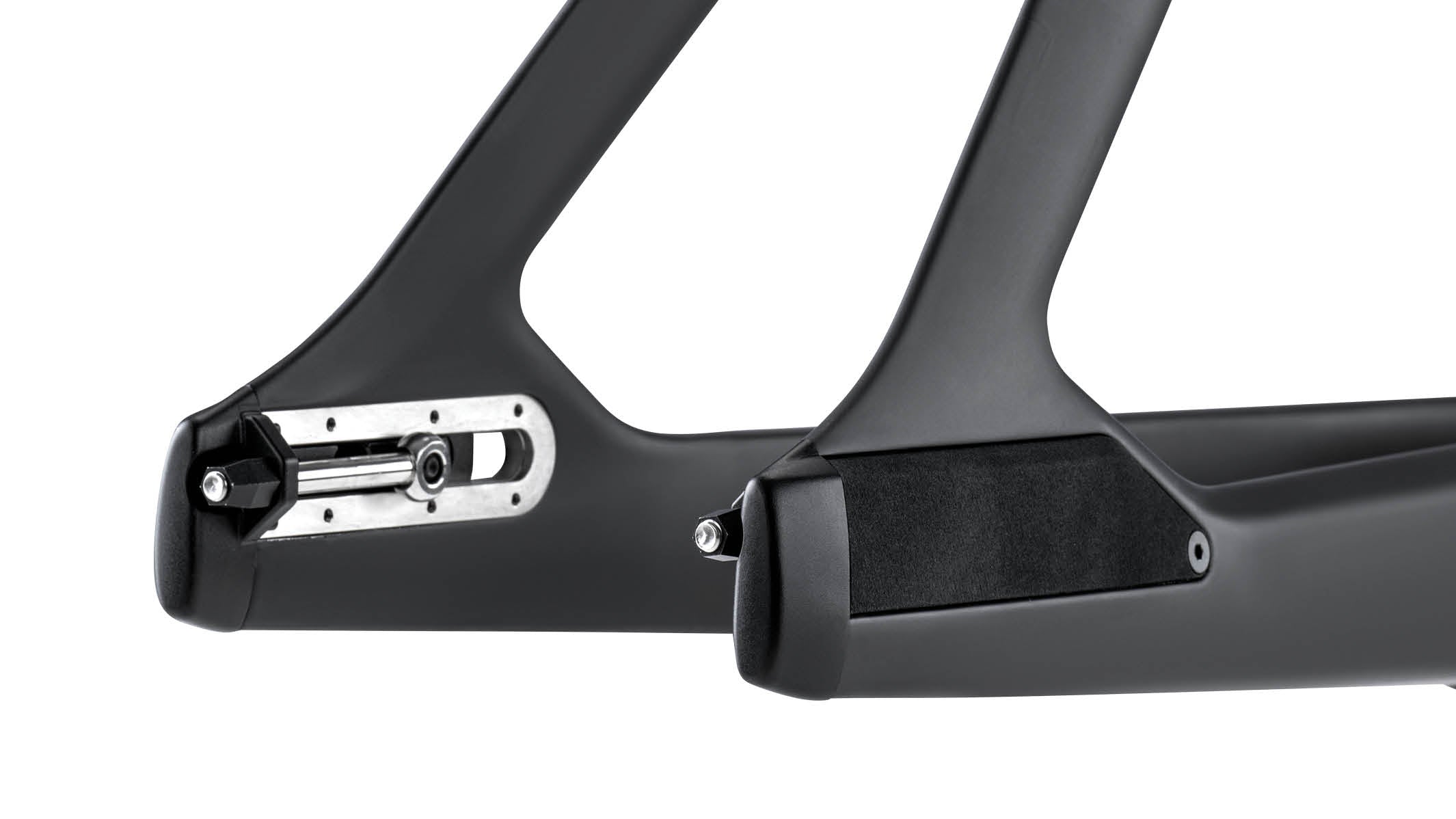

Adjustable Dropouts
Technical Overview
Frameset
Frame:
Trackmachine 01 | 01 Premium Carbon with Aero Design | Steel Sliding Dropout | Compatible to fit BMC Pursuit Base Bar (sold separately)
Fork:
Trackmachine 01 | 01 Premium Carbon with Vmax Aero Design Hinge-Design
Cockpit
Stem:
Stem not included. Compatible with standard 1"1/8 stem.
Seat
Seatpost:
Trackmachine 01 | 01 Premium Carbon Aero Seatpost
Drivetrain
Rear Derailleur:
Track single speed adjustable dropouts
Bottom Bracket:
BSA Threaded Bottom Bracket
Additional Information
Tire Clearance:
26mm measured tire
Weight without Pedals:
3090g | Size M as pictured with steerer stem and all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <173 | 170-185 | >183 |
| Reach | 434 | 459 | 452 |
| Stack | 436 | 471 | 526 |
| BB Drop | 64 | 64 | 64 |
| Fork Length | 364 | 364 | 364 |
| Fork Rake | 45 | 45 | 45 |
| Front Center | 605 | 642 | 653 |
| Head Tube | 41 | 78 | 135 |
| Head Tube Angle | 72° | 72° | 72° |
| Rear Center | 375-444 | 375-444 | 375-444 |
| Seat Angle | 75.5° | 75.5° | 75.5° |
| Seat Tube | 484 | 521 | 577 |
| Seatpost Length | 280 | 320 | 360 |
| Seatpost Offset | -18mm / 0mm / +18mm / +36mm | -18mm / 0mm / +18mm / +36mm | -18mm / 0mm / +18mm / +36mm |
| Standover Height | 747 | 782 | 837 |
| Top Tube | 554 | 588 | 596 |
| Trail | 62 | 62 | 62 |
| Wheelbase | 972-1042 | 1008-1078 | 1019-1089 |
