BMC-23-10102-002

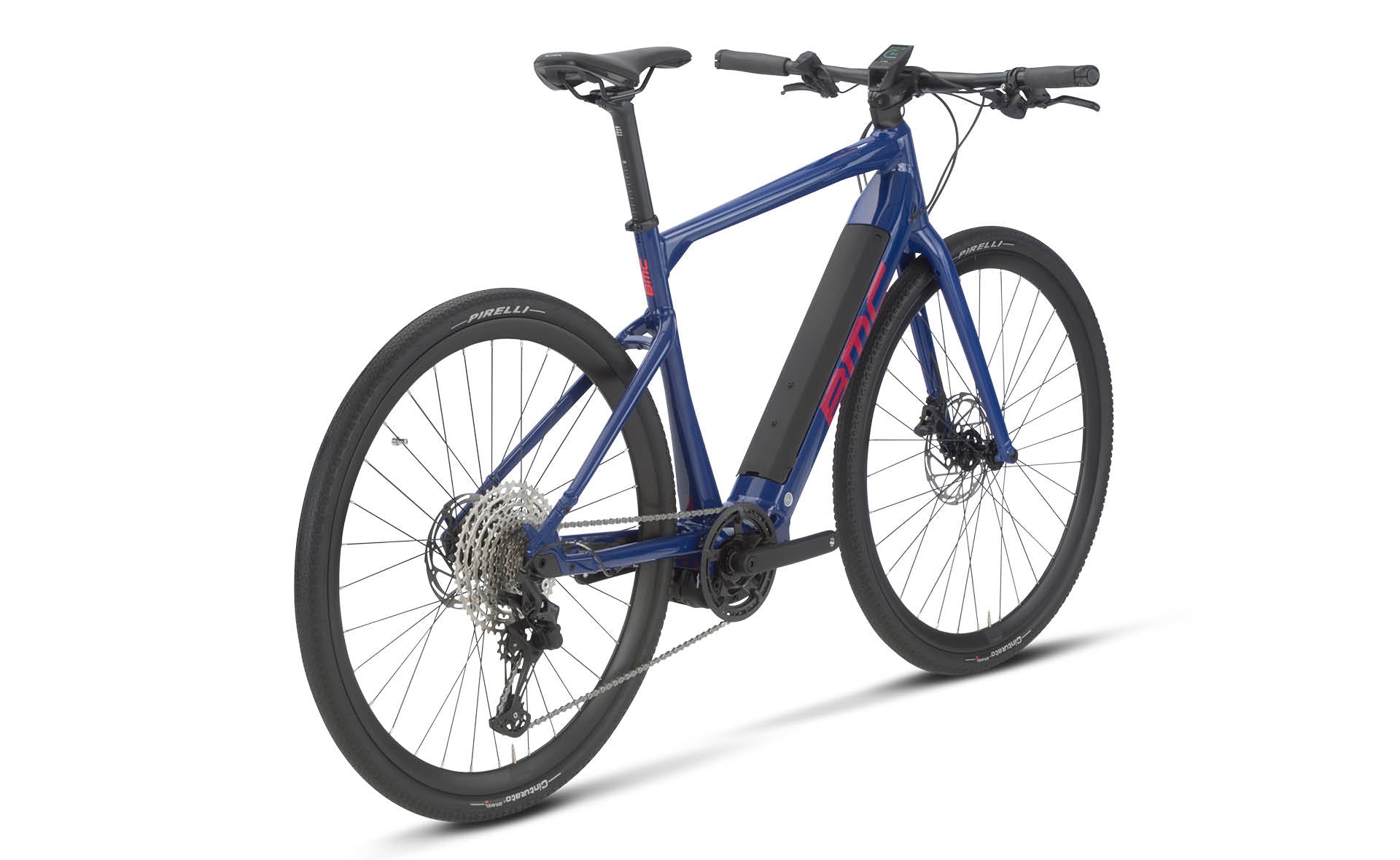

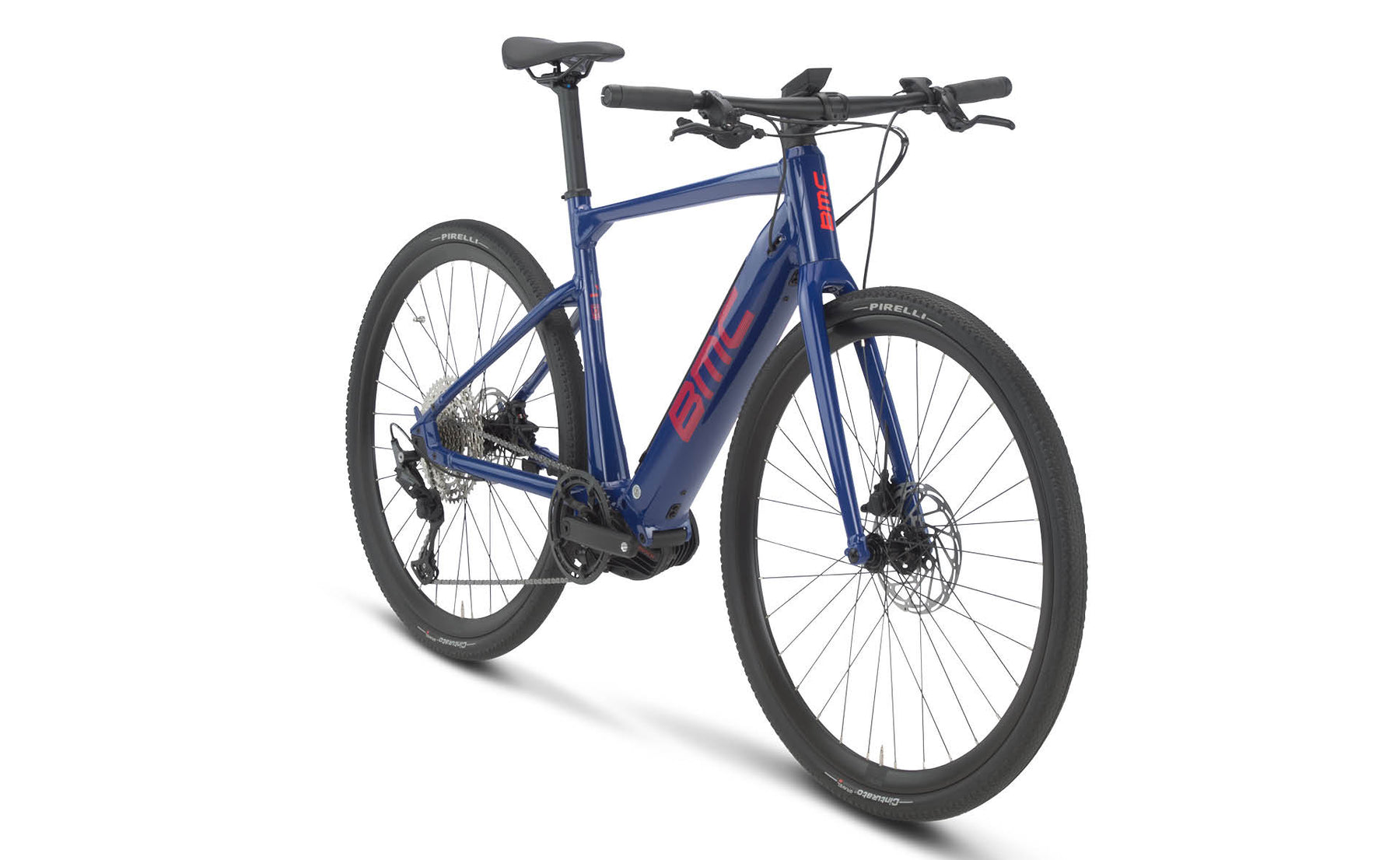

Alpenchallenge AMP AL ONE

ULTRAMARINE BLUE / NEON RED

Unità Bosch Performance CX Drive, Batteria 625 Wh Integrated
Attacco manubrio ICS MTT x Redshift
Gruppo SHIMANO Deore 11 spd

Prezzo di listinoCHF 4,999.00
/
Imposte incluse.

SKU: 30002836
Misura

Alpenchallenge AMP AL ONE

Parti e accessori

L'Alpenchallenge AMP AL ONE ha un telaio e una forcella interamente in Premium-Aluminium, saldati lisci, che incorporano un'unità di trasmissione Bosch Performance CX, con batteria integrata PowerTube 625Wh. Il telaio è verniciato a polvere per una maggiore durata, ha supporti per parafanghi e un attacco manubrio ICS. La maggior parte della trasmissioni è Shimano Deore a 11 velocità, con una guarnitura FSA, ruote SR500 e pneumatici Pirelli Cinturato Gravel H da 40 mm.

Panoramica tecnica

Telaio

Telaio:
Alpenchallenge AMP Premium Aluminium Smoothwelded | Integrated Battery | Internal Cable Routing | Powder Coat Finish | Flat Mount Disc | 12x142mm Thru-Axle

Forcella:
Alpenchallenge AMP Premium Aluminium | Fender Mounts | Post Mount Disc | 12x100mm Thru-Axle

Cockpit

Piega:
BMC LSB 01

Attacco Manubrio:
ICS MTT x Redshift Suspension Stem - Integrated Cockpit System Technology

Reggisella:
BMC LSP 02

Sella:
Selle Royal Vivo

Gruppo

Ingranaggi:
1x11

Guarnitura:
Miranda Classic x Bosch

Cassetta:
SHIMANO Deore CS-M5100 11 spd 11-51T

Catena:
KMC e11 Silver - Designed for Bosch

Deragliatore Posteriore:
SHIMANO Deore RD-M5100 11 spd

Comandi:
SHIMANO Deore SL-M5100-R Rapidfire Plus

Sospensioni

Sospensione Anteriore:

Freni

Leve Freno / Pinze:
TRP HD-EU818 / 817 4 Pistons Calipers

Rotori:
TRP RS02M 180 / 160mm

Ruote

Cerchi:
SR500

Mozzi:
RX-812 / RX-142

Pneumatici:
Pirelli Cinturato Gravel H - 40mm

Specifiche AMP

Unità di Trasmissione:
Bosch Performance Line CX

Batteria:
Bosch PowerTube 625 Wh

Controllo Dell'unità di Trasmissione:
Bosch Kiox

Display:
Bosch Kiox

Caricabatterie:
Bosch Compact Charger

Informazioni aggiuntive

Distanza dai Pneumatici:
42mm (Measured Width)

Classificazione ASTM:
Level 2

Limite di Peso:
120 Kg

SizeSMLXL
Rider Height<168168-180178-190>190
Reach424424425436
Stack560590620645
Bar Drop
Bar Reach
Bar Rise
Bar Sweep
Bar Width680680680680
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop67676767
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170170170
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length408408408408
Fork Rake45454545
Frame Size
Front Center655665677699
Front Center (SLACK)
Front Center (STEEP)
Head Tube133165197225
Head Tube Angle70707070
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center440440440440
Saddle Height Range
Seat Angle75757575
Seat Tube480510540570
Seatpost Drop
Seatpost Length350350350350
Seatpost Offset15151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height766794819847
Stem Angle
Stem Length70708090
Top Tube574582591609
Top Tube (SLACK)
Top Tube (STEEP)
Trail75757575
Wheelbase1085109611081129
Wheelbase (SLACK)
Wheelbase (STEEP)
