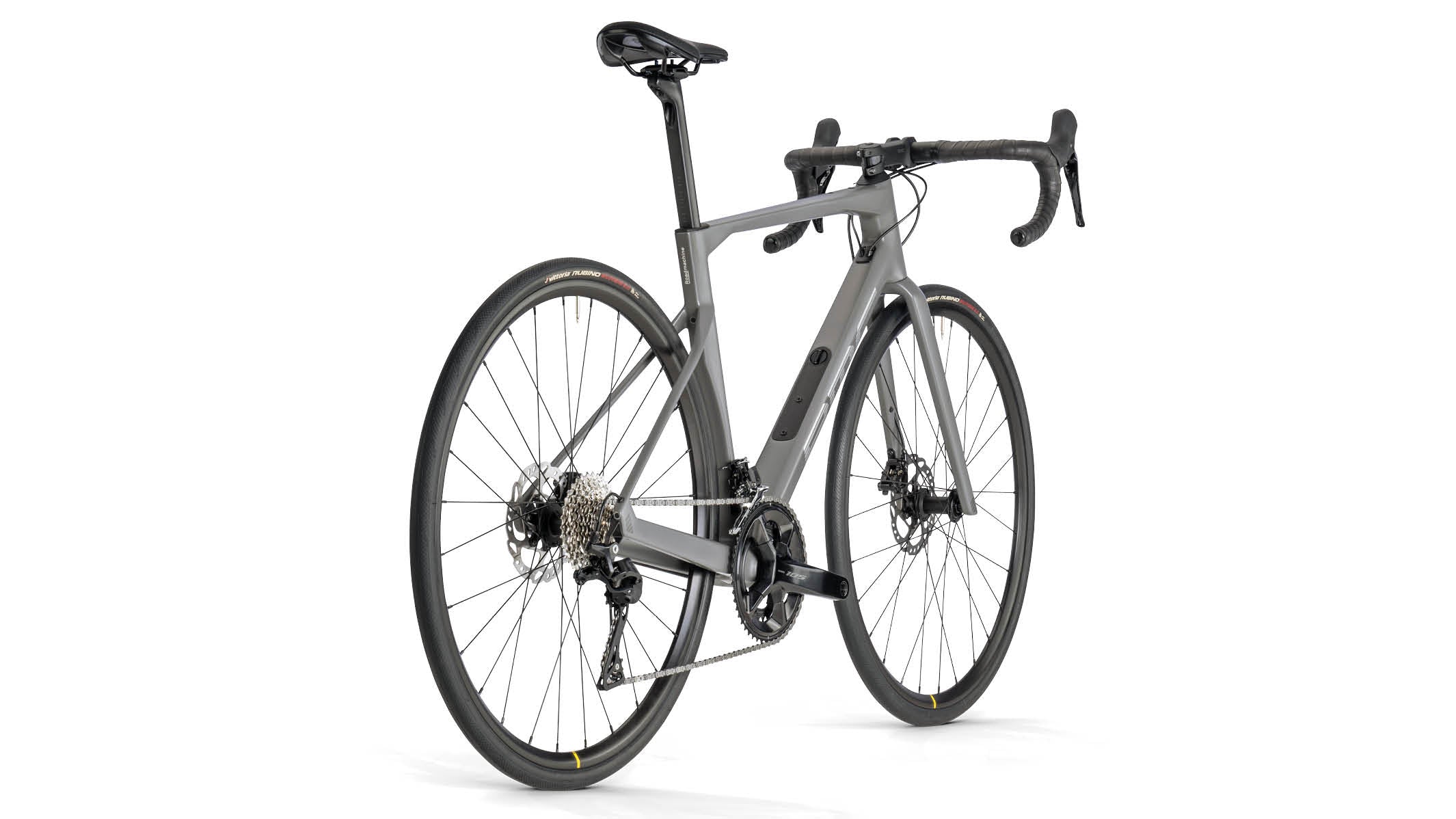

I nostri ingegneri BMC hanno perfezionato ogni possibile elemento della formula endurance per offrire un comfort ineguagliabile per ogni esperienza. La Roadmachine FIVE è dotata di un reggisella Premium Carbon D-Shape per il massimo confort in sella, di un gruppo meccanico Shimano 105, di ruote Mavic Open Disc con pneumatici da 30 mm per garantire la scorrevolezza su strada e di un vano portaoggetti integrato nel tubo obliquo.
Tecnologia
Vano tubo obliquo
Reggisella D-Shape
Supporti per parafanghi
TCC Endurance
Panoramica tecnica
Telaio
Telaio:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Integrated Downtube Storage | Compatible with Integrated Bottle Cages and Rear Light | Stealth Dropout Design | PF86 Bottom Bracket | 12x142mm Thru-Axle
Forcella:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle
Cockpit
Piega:
BMC RAB 03, Ergo Top Shape, Compact Bend
Attacco Manubrio:
BMC RSM01
Reggisella:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Sella:
Fizik Taiga or Selle Royal SRX
Seat
Reggisella:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Sella:
Fizik Taiga or Selle Royal SRX
Gruppo
Ingranaggi:
2x12
Guarnitura:
SHIMANO 105 FC-R7100 50-34T
Cassetta:
SHIMANO 105 CS-R7101 11-34T
Catena:
SHIMANO CN-M6100 12spd
Deragliatore Anteriore:
SHIMANO 105 FD-R7100
Deragliatore Posteriore:
SHIMANO 105 RD-R7100 12spd
Comandi:
SHIMANO 105 ST-R7120 12spd
Freni
Leve Freno / Pinze:
SHIMANO 105 BR-R7170
Rotori:
SHIMANO SM-RT70 160 / 160 mm
Ruote
Cerchi:
Mavic Open Disc
Mozzi:
CL-712 (F)/RXC-142S (R) - Thru Axle
Pneumatici:
Vittoria RUBINO IV G2.0, tube only - 30mm
Informazioni Tubeless:
Tubetype Rims / Tubetype Tires
Informazioni aggiuntive
Distanza dai Pneumatici:
40mm (Measured Width)
Classificazione ASTM:
Level 2
Limite di Peso:
110 Kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <160 | 158-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop | 125 | 125 | 125 | 127 | 127 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Frame Size | ||||||
| Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 415 | 415 | 415 | 415 | 415 | 415 |
| Saddle Height Range | ||||||
| Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Drop | ||||||
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 430 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) | ||||||
| ST Angle Actual (STEEP) | ||||||
| ST Angle Effective (SLACK) | ||||||
| ST Angle Effective (STEEP) | ||||||
| Stack (SLACK) | ||||||
| Stack (STEEP) | ||||||
| Stand Over Height (80 in Front of BB) | ||||||
| Stand Over Height (Lowest Point) | ||||||
| Standover Height | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 520 | 537 | 546 | 559 | 571 | 581 |
| Top Tube (SLACK) | ||||||
| Top Tube (STEEP) | ||||||
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
| Wheelbase (SLACK) | ||||||
| Wheelbase (STEEP) |
