BMC Bikes | Fourstroke 01 TEAM CARBON BLACK / WHITE
BMC Bikes | Fourstroke 01 TEAM CARBON BLACK / WHITE
BMC Bikes | Fourstroke 01 TEAM CARBON BLACK / WHITE

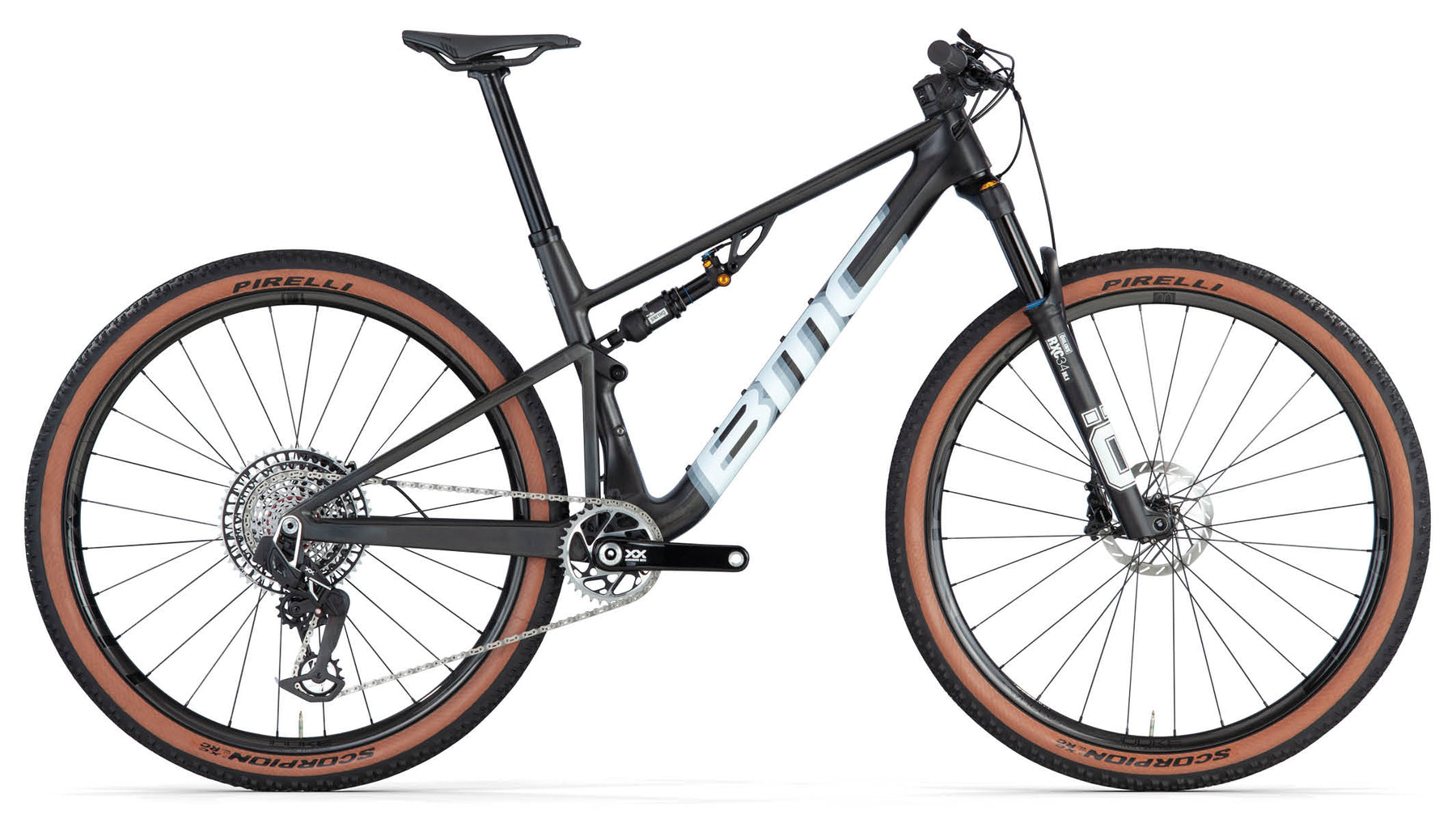

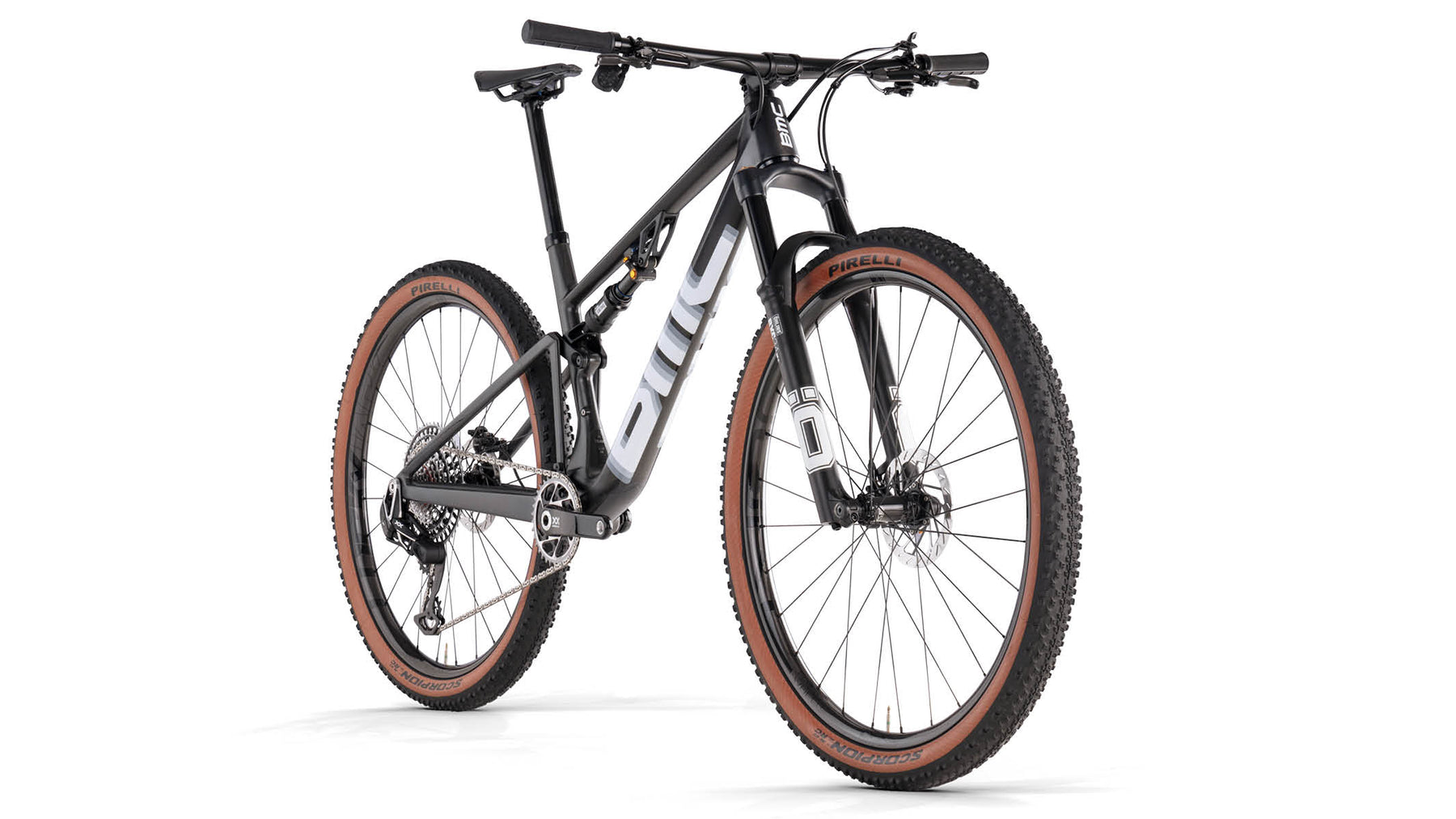

Fourstroke 01 TEAM

CARBON BLACK / WHITE

Limited Edition Fourstroke 01
SRAM XX SL Eagle Transmission Drivetrain
Öhlins Suspension

Regular priceCHF 13,499.00
/
Tax included.

SKU: 30006328
Size
  • Low stock - 3 items left
  • Inventory on the way

Fourstroke 01 TEAM

Parts & Accessories

  • Shipped to your local bike shop
Designed to be raced. The Fourstroke 01 TEAM Edition features a superlight carbon frame with carbon finish, BMC’s renowned Autodrop Technology, top-end SRAM XX SL Eagle Transmission drivetrain and perfectly paired with Öhlins suspensions. The featherlight build is finished off with the Duke Lucky Jack Carbon Wheelset, bringing it to an eye wateringly light 10.3kg!

Technology

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Suspension

Front Suspension:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Rear Suspension:
Öhlins TXC2 Air | DT Swiss Remote Lockout

Remote Lockout:
DT Swiss Remote Lockout

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 01 Carbon | 760mm

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:
Prologo Dimension NDR

Drivetrain

Crankset:
SRAM XX SL Eagle Carbon

Chainrings:
34T

Cassette:
SRAM XX SL Eagle Transmission XS-1299

Cassette Size:
10-52T

Chain:
SRAM XX SL Eagle Transmission Flattop

Rear Derailleur:
SRAM XX SL Eagle Transmission

Shifters:
SRAM AXS Pod Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Level Ultimate

Rotors:
SRAM HS2

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
Duke Lucky Jack SLS4 | 28 Spokes | Inner Width 30mm (F), 28mm (R)

Hubs (F/R):
Duke Madmax

Tires:
Pirelli Scorpion XC RC | 2.4"

Tubeless Information:
Tubeless Rim | Tubeless Tires

Additional Information

Tire Clearance:
62mm

Weight without Pedals:
10.3 Kg

ASTM Classification:
Level 3

System Weight Limit:
110kg

SizeSMLXL
SCOR Size
Rider Height<172172-182180-188>188
Reach437457477500
Stack584592600615
Bar Drop
Bar Reach
Bar Rise4444
Bar Sweep8888
Bar Width760760760760
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop53535353
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length513513513513
Fork Rake44444444
Front Center714738762791
Front Center (SLACK)
Front Center (STEEP)
Head Tube83.8493.5101.25117.58
Head Tube Angle66.566.566.566.5
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center432432432432
Saddle Height Range
Seat Angle76.776.776.776.7
Seat Tube420440470510
Seatpost Drop80808080
Seatpost Length
Seatpost Offset
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height725725725725
Stem Angle-5-5-5-5
Stem Length50606070
Top Tube574597621.2649.23
Top Tube (SLACK)
Top Tube (STEEP)
Trail113113113113
Wheelbase1139117111881218
Wheelbase (SLACK)
Wheelbase (STEEP)
