BMC-23-10616-007

Timemachine ROAD 01 THREE

IRON GREY / BLACK

Transmission SRAM Rival eTap AXS
Paire de roues compatibles tubeless CRD-501 Carbon
Cockpit ICS Aero et module Aero

Prix régulierCHF 7,499.00
/
Taxes incluses.

SKU: 30002574
Taille

Timemachine ROAD 01 THREE

Pièces et accessoires

  • You may find this product within our Retailer Network

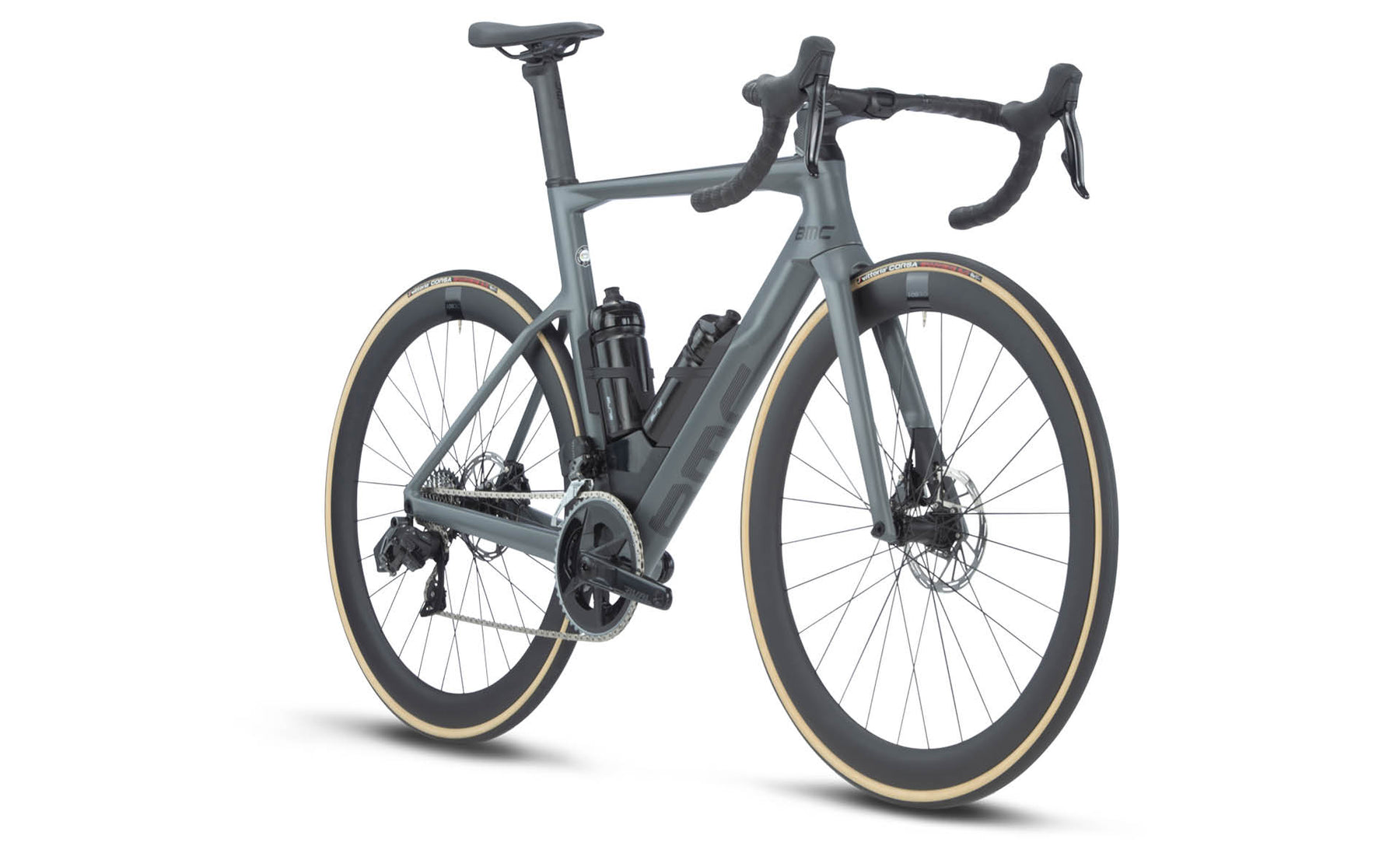

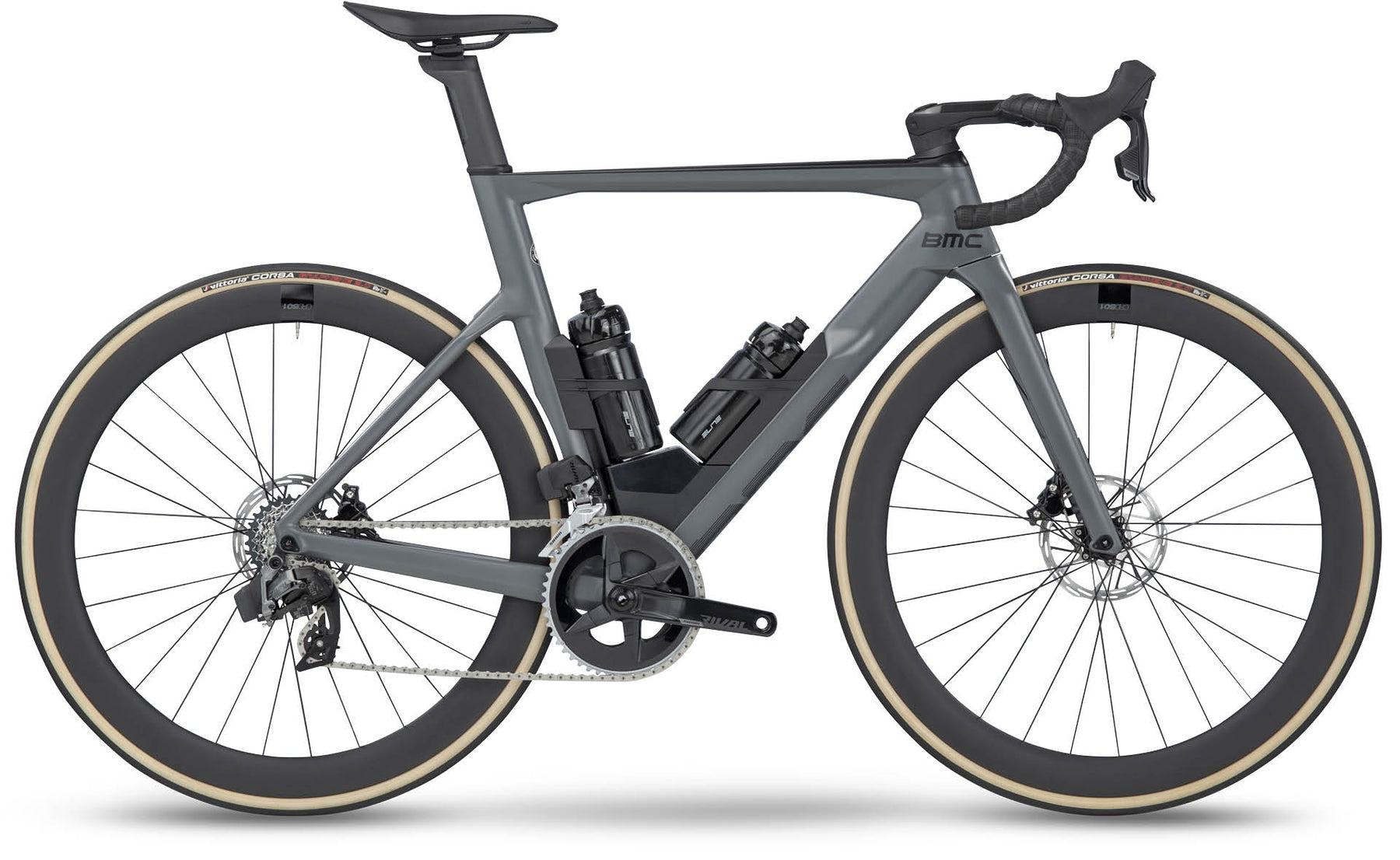

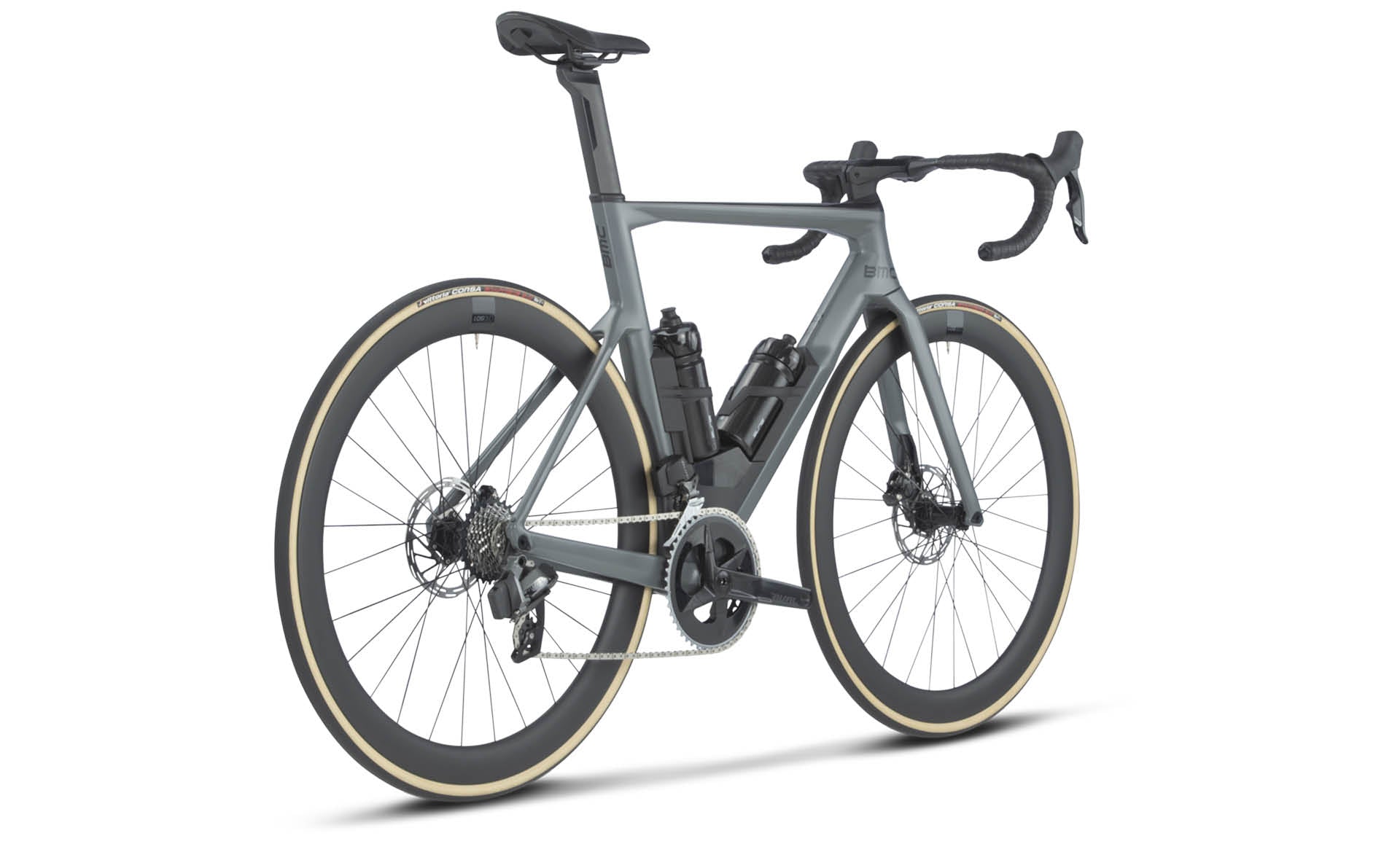

Prenez l’aérodynamisme de nos vélos de contre-la-montre les plus rapides, et mélangez-y une dose de confort pour le quotidien additionnée des capacités de nos meilleurs grimpeurs sur route ; voici le Timemachine ROAD 01. Avec sa fourche et son cadre en carbone haut de gamme TCC Speed, ce vélo Aero présente toutes les caractéristiques requises pour rouler à pleine vitesse, notamment le module Aero, le déflecteur de frein avant Aero, le cintre avec potence ICS Aero, la tige de selle Aero et un passage de câbles interne. Passez au sans-fil avec le groupe 12 vitesses SRAM Rival eTap AXS, associé aux roues 50 mm CRD-501 Carbon.

Technologie

Aperçu technique

Kit cadre

Cadre:
Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed | ICS Aero Technology | Stealth Cable Routing | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

Fourche:
Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed | ICS Technology Stealth Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle

Cockpit

Cintre:
BMC ICS Aero - Aero Top Shape - Compact Bend

Potence:
BMC ICS Aero - Integrated Aero Cockpit Design

Tige de Selle:
Timemachine Road 01 Premium Carbon Aero Seatpost

Selle:
Fizik Argo Vento R3 (140mm)

Transmission

Vitesses:
2x12

Pédalier:
SRAM Rival 48-35T

Cassette:
SRAM Force XG-1270 10-30T

Chaîne:
SRAM Rival 12 Speed

Dérailleur Avant:
SRAM Rival eTap AXS

Dérailleur Arrière:
SRAM Rival eTap AXS

Leviers de Vitesses:
SRAM Rival eTAP AXS HRD

Freins

Leviers de Frein / Étriers:
SRAM Rival eTap AXS HRD

Disques:
SRAM Paceline 160 / 160mm

Roues

Jantes:
CRD-501 Carbon - Tubeless Ready - 50mm

Moyeux:
CRD-501

Pneus:
Vittoria Corsa - 25mm

Accessoires

Aerocore Bottle Cages

Informations supplémentaires

Dégagement Pneumatiques:
28mm (Measured Width)

Classification ASTM:
Level 1

Limite de Poids:
110 Kg

Size475154565861
Rider Height<166166-174172-180178-186184-192>190
Reach373381390395405413
Stack496520540555574598
Bar Drop122122122122122122
Bar Reach666666666666
Bar Rise
Bar Sweep
Bar Width400420420420420440
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop707070707070
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length379379374374374374
Fork Rake505045454545
Frame Size
Front Center577592594604620636
Front Center (SLACK)
Front Center (STEEP)
Head Tube88113135150170196
Head Tube Angle71.271.272727272
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center410410410410410410
Saddle Height Range
Seat Angle73.573.573.573.573.573.5
Seat Tube480518548568588611
Seatpost Drop
Seatpost Length210210270270270270
Seatpost Offset0 / 15 / 300 / 15 / 300 / 15 / 300 / 15 / 300 / 15 / 300 / 15 / 30
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height743774799816834858
Stem Angle-15-15-15-15-15-15
Stem Length100100110110110120
Top Tube520535550560575590
Top Tube (SLACK)
Top Tube (STEEP)
Trail626262626262
Wheelbase975991994100410201036
Wheelbase (SLACK)
Wheelbase (STEEP)
