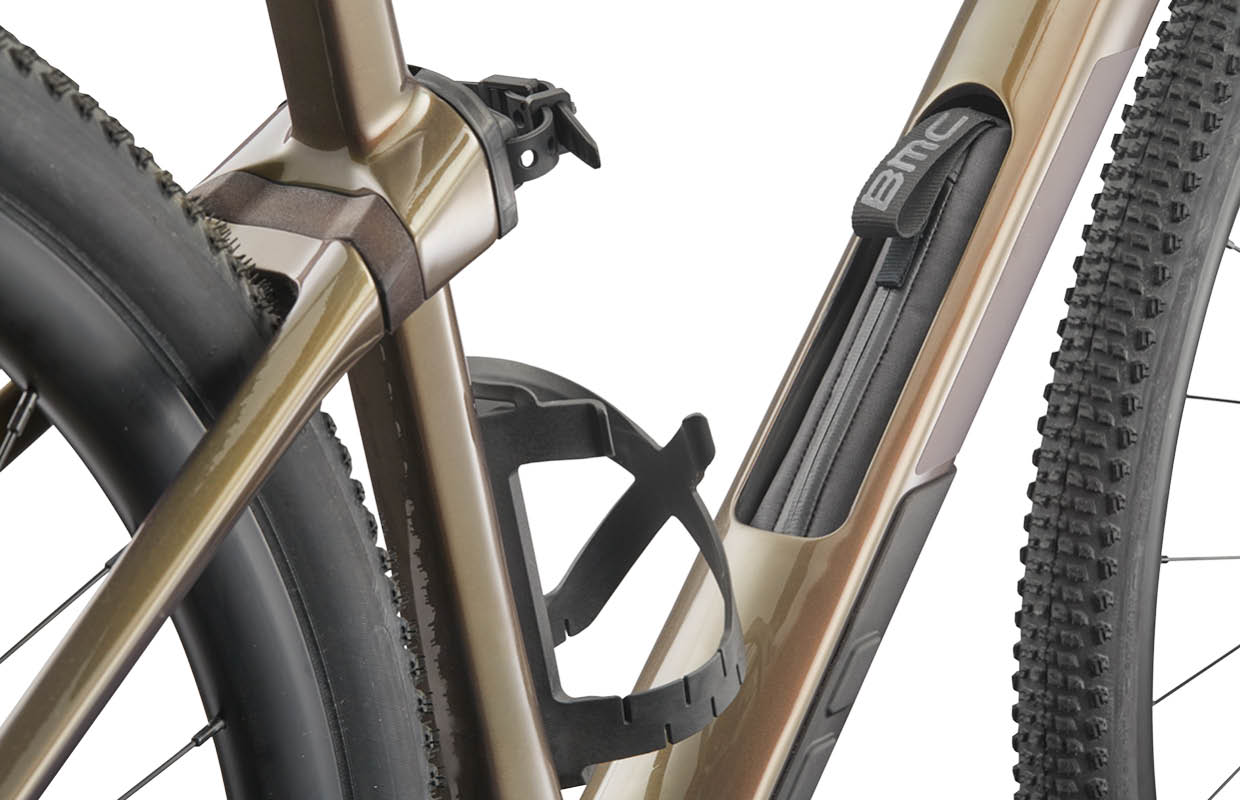

Spazio di stivaggio nel tubo obliquo

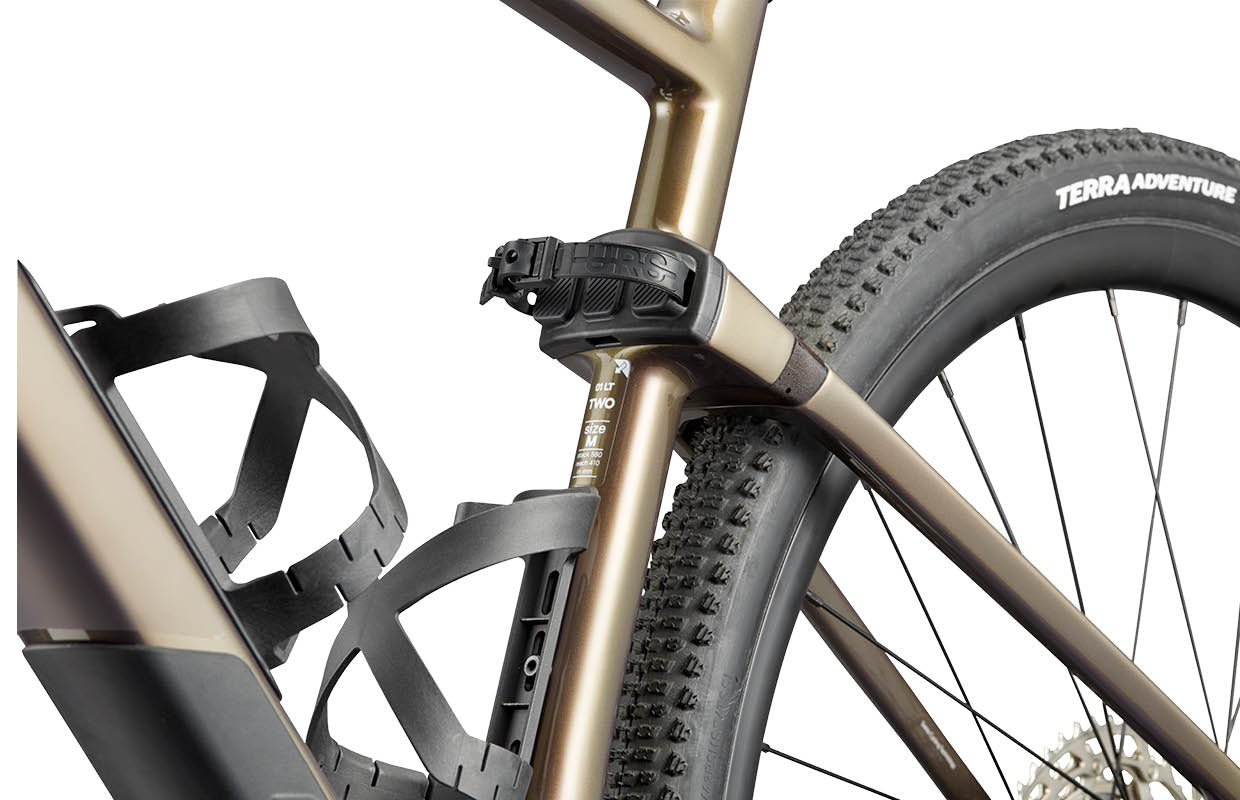

innovationFoderi Posteriori con Micro Travel Technology
Con 10 mm di sospensione regolabile, l’MTT smorza anche il gravel più impegnativo. Regolala in base al tuo peso e sfrutta la capacità extra di trasporto grazie alla cinghia aggiuntiva per il carico.

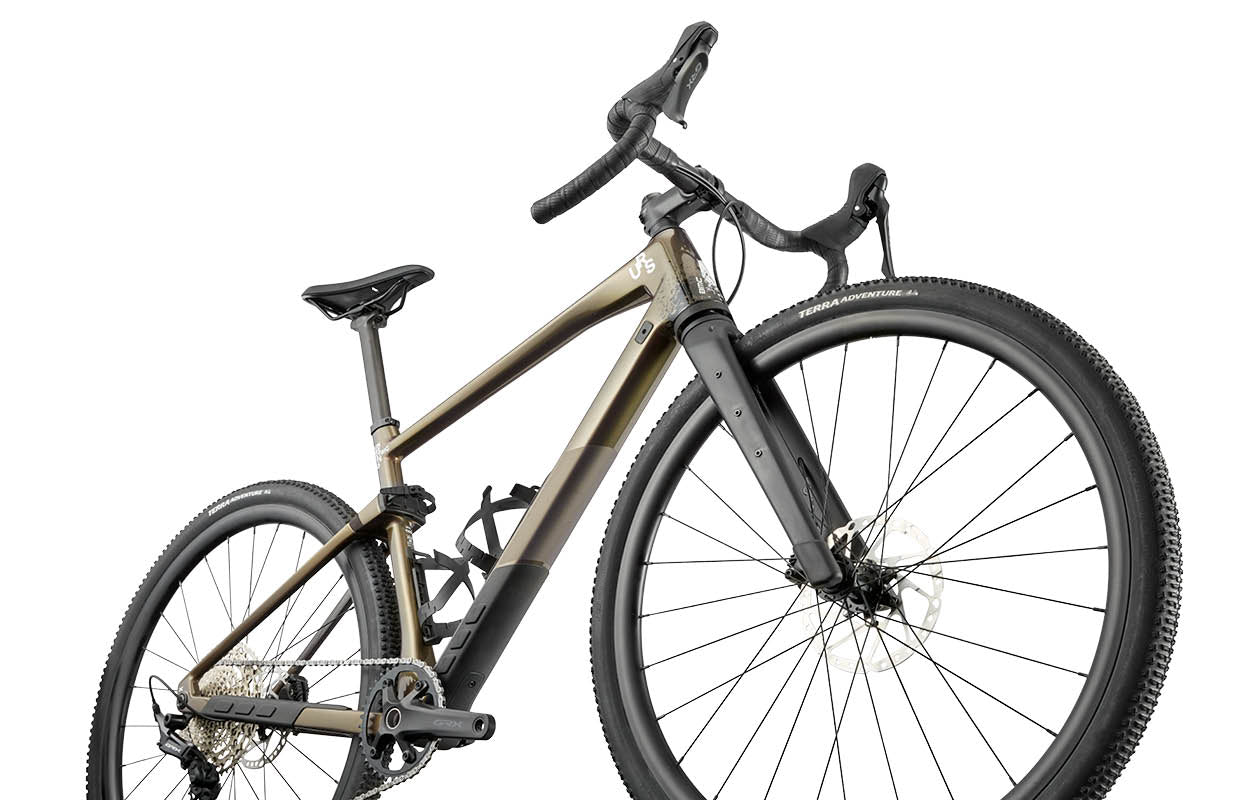

Forcella ammortizzata MTT
20 mm di escursione morbida su una curva di compressione ottimizzata per affrontare ciò che non ti aspetti sui sentieri. La Micro Travel Technology integrata nella forcella ti permette di regolare la sospensione in base al tuo peso e al tipo di terreno.
Geometria Gravel+
Per questa generazione di URS, abbiamo ridefinito la geometria puntando sul Gravel+ per prestazioni e sicurezza. Reach lungo e attacco corto offrono una guida stabile e reattiva, così puoi guardare oltre l’orizzonte.
Panoramica tecnica
Telaio
Telaio:
URS 01 Gen 2 | 01 Premium Carbon with Micro Travel Technology | Gravel+ Geometry | ICS Technology | Full Mount - UDH | Integrated Storage | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle
Forcella:
Micro Travel Technology Suspension Fork Premium Carbon blades | 20mm Travel | Coil Spring & Hydraulic Damper | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Sospensioni
Sospensione Anteriore:
Micro Travel Technology Suspension Fork | Premium Carbon Blades | 20mm Travel | Coil Spring & Hydraulic Damper | Cargo Mounts | Fender Mounts | Hub-Dynamo Cable Routing
Sospensione Posteriore:
Micro Travel Technology Stays
Cockpit
Attacco Manubrio:
BMC MSM
Piega:
BMC HB D4 03, 0, 16 | Alloy 6061 | Gravel Geometry | 115mm drop, 70mm reach, 16° flare
Nastro:
BMC Tacky 3mm
Seat
Reggisella:
URS 01 | 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Sella:
Fizik Vento Argo X7 | 150mm
Gruppo
Guarnitura:
SHIMANO GRX (FC-RX610-1)
Corona:
38T
Pacco pignoni:
SHIMANO Deore CS-M6100-12
Ingranaggi:
10-51T
Catena:
SHIMANO CN-M6100
Cambio:
SHIMANO GRX (RD-RX822)
Comandi:
SHIMANO GRX (BL-RX610 / ST-RX610)
Rapporti:
1 x 12
Movimento centrale:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Freni
Leve Freno / Pinze:
SHIMANO GRX (BR-RX410)
Dischi freno:
SHIMANO SM-RT64 | Centerlock
Diametro dischi:
180 / 160mm
Ruote
Cerchi:
GR650 | Tubeless Ready | 26mm
Mozzi:
SHIMANO HB-TC500-12 & FH-TC500-MS | Center Lock | 28H
Pneumatici:
Continental Terra Adventure Trail Grip | Tubeless | 45mm
Informazioni Tubeless:
Tubeless Rim | Tubeless Tires
Accessori
Ambito di consegna:
X-Cages │Storage Pouch │Cargo Strap
Informazioni aggiuntive
Sezione max coperture:
47mm measured tire
Peso senza Pedali:
11.1kg | Size M as pictured with all accessories
Classificazione ASTM:
Level 2
Limite di peso massimale:
120kg
Regolamento sulla sicurezza generale dei prodotti (GPSR):
Avvertenze di sicurezza GPSR (UE)
Persona responsabile ai sensi del GPSR (UE)
Geometria
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165-170 | 168-178 | 176-188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 115 | 115 | 115 | 115 | 115 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 390/449 | 390/449 | 410/469 | 410/469 | 430/489 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 165 | 165 | 170 | 170 | 172.5 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69° | 69° | 69.5° | 69.5° | 69.5° |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Angle | ±7° | ±7° | ±7° | ±7° | ±7° |
| Stem Length | 70 | 70 | 70 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
